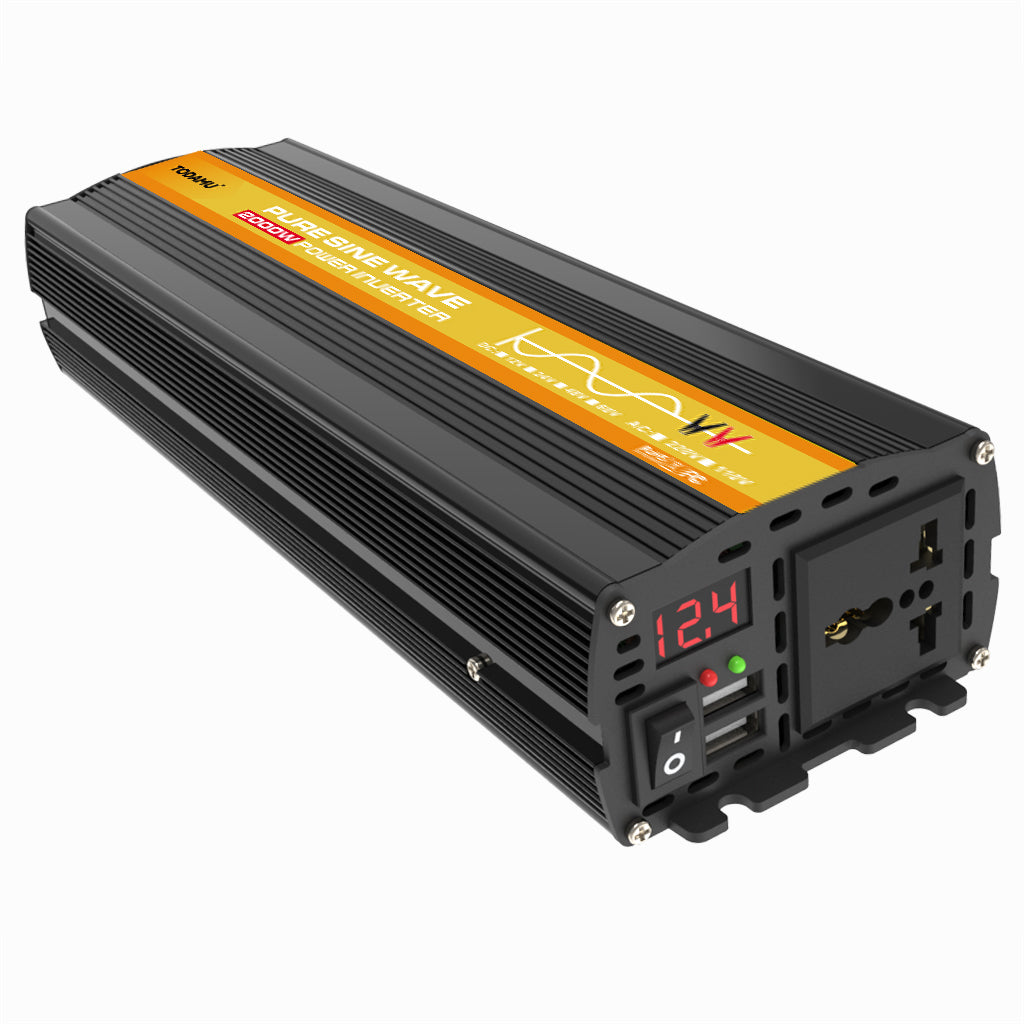

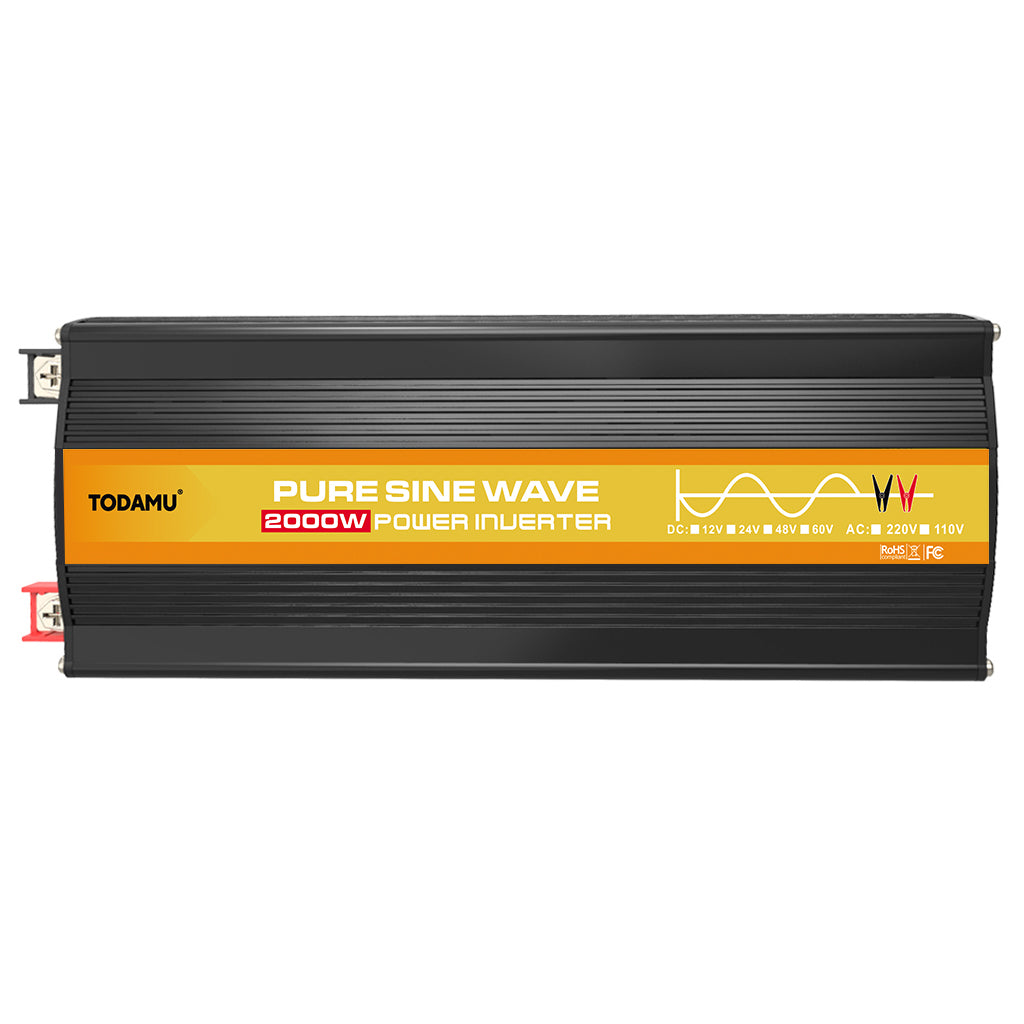

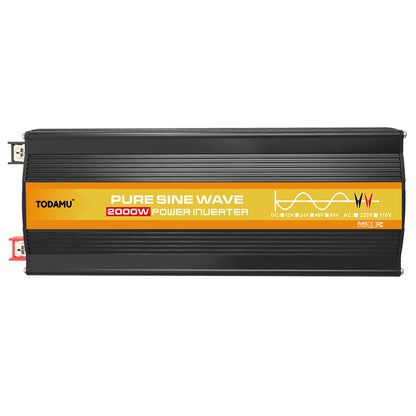

International Plug 2000W Pure Sine Wave Power Inverter

Specifications:

Name: Pure sine wave power inverter

Input voltage: DC 12V/24V/48V/60V

Output voltage: AC 110V/220V

Output frequency: 50Hz(or ajust to 60Hz)

Peaks Power: 2000W

Rated power: 1000W

USB Charger Port: For the 12V Model, has 2 USB chargers

Weight: 1.6kg

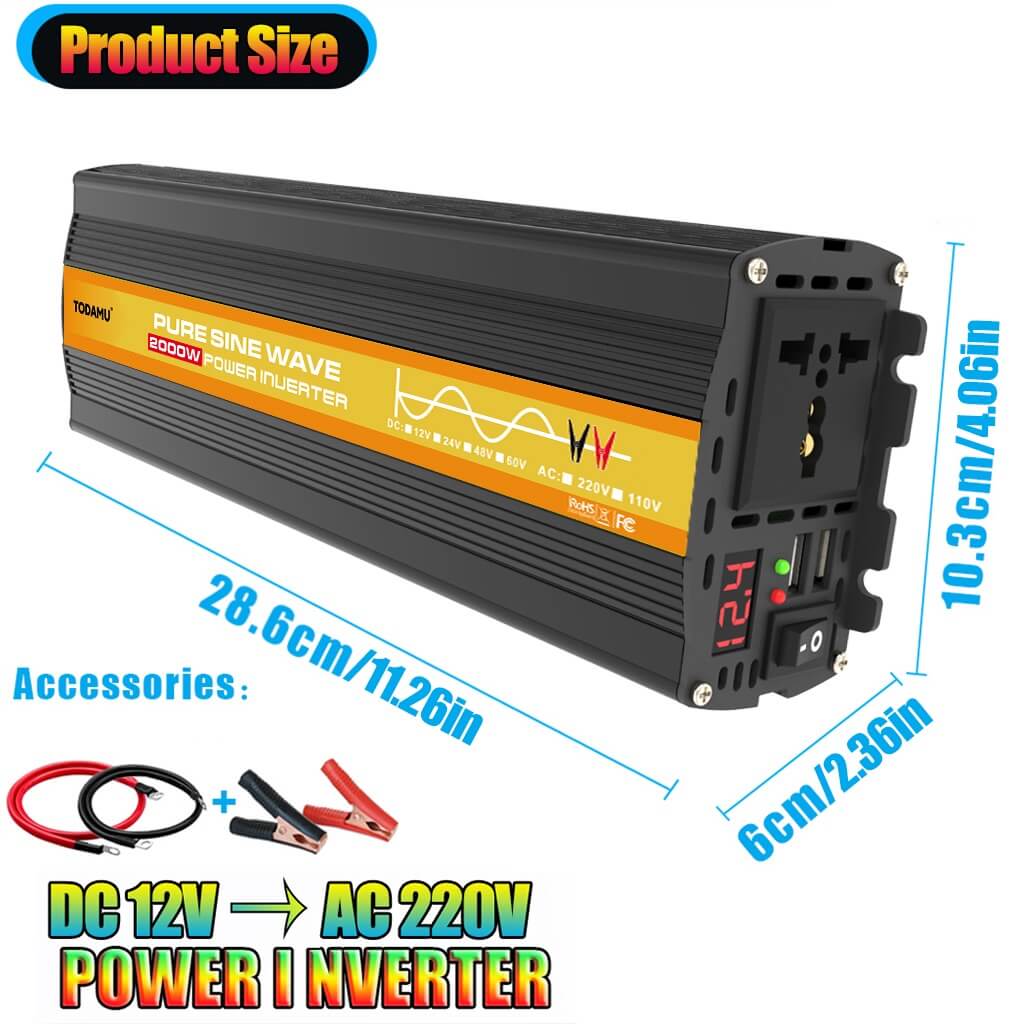

Product size: 28.6X10.3X6cm

Maximum Active Surge Rating (less than 1 second):2000W

Maximum AC Current per socket: 8.33Ampere

Output Waveform: True/pure sine wave (<3% THD)

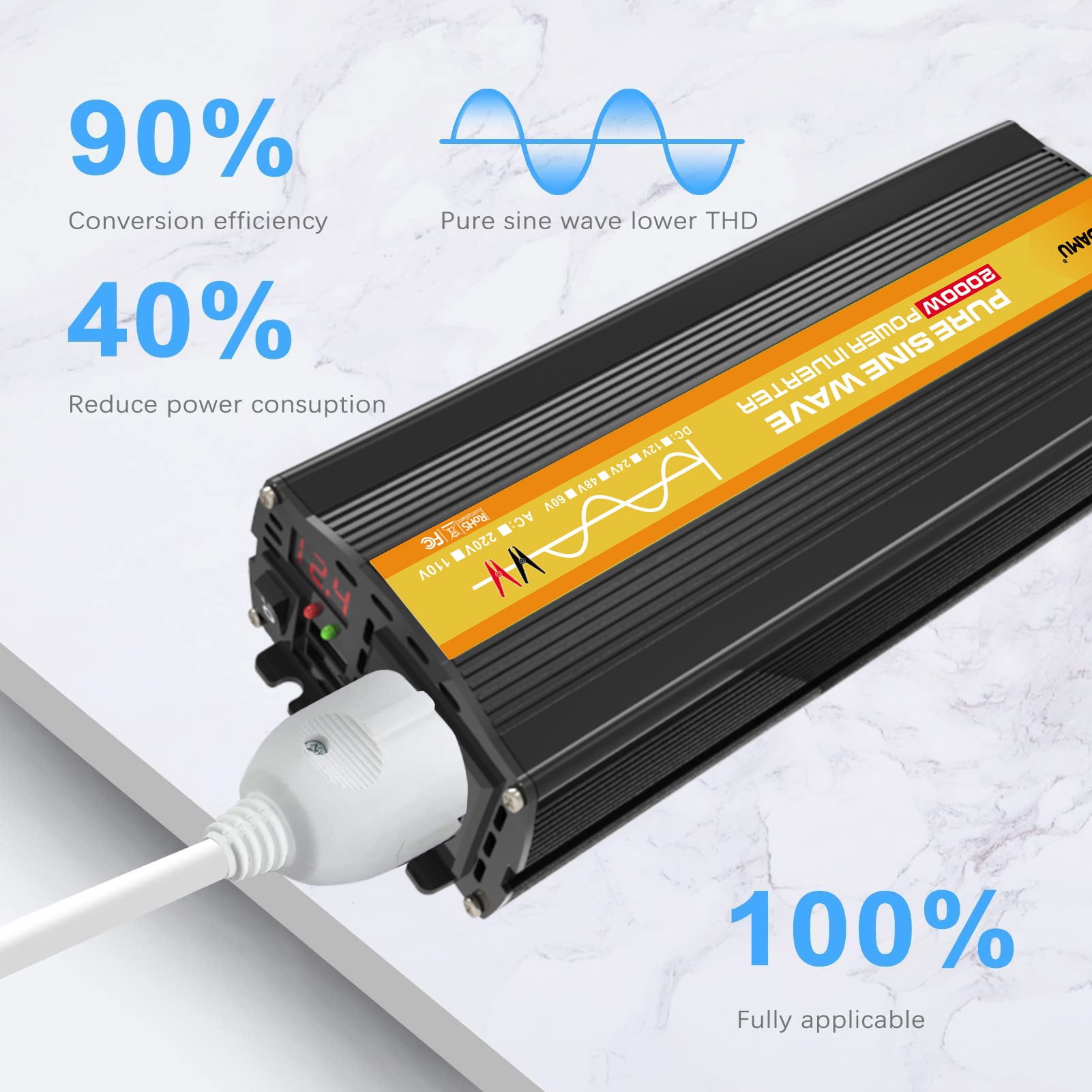

Efficiency: 90%

No Load Current Draw (DC side) <0.6 A

2000W Pure Sine Wave Power Inverter – Multi-Voltage DC to AC Converter

This 2000W Pure Sine Wave Power Inverter delivers 1000W continuous output and 2000W peak surge power, converting 12V/24V/48V/60V DC to 110V/220V AC. Equipped with an AC outlet, dual USB ports, an LED display, and advanced protection features, it’s ideal for car, RV, home backup, outdoor camping, and solar power systems.

✅ Advantages

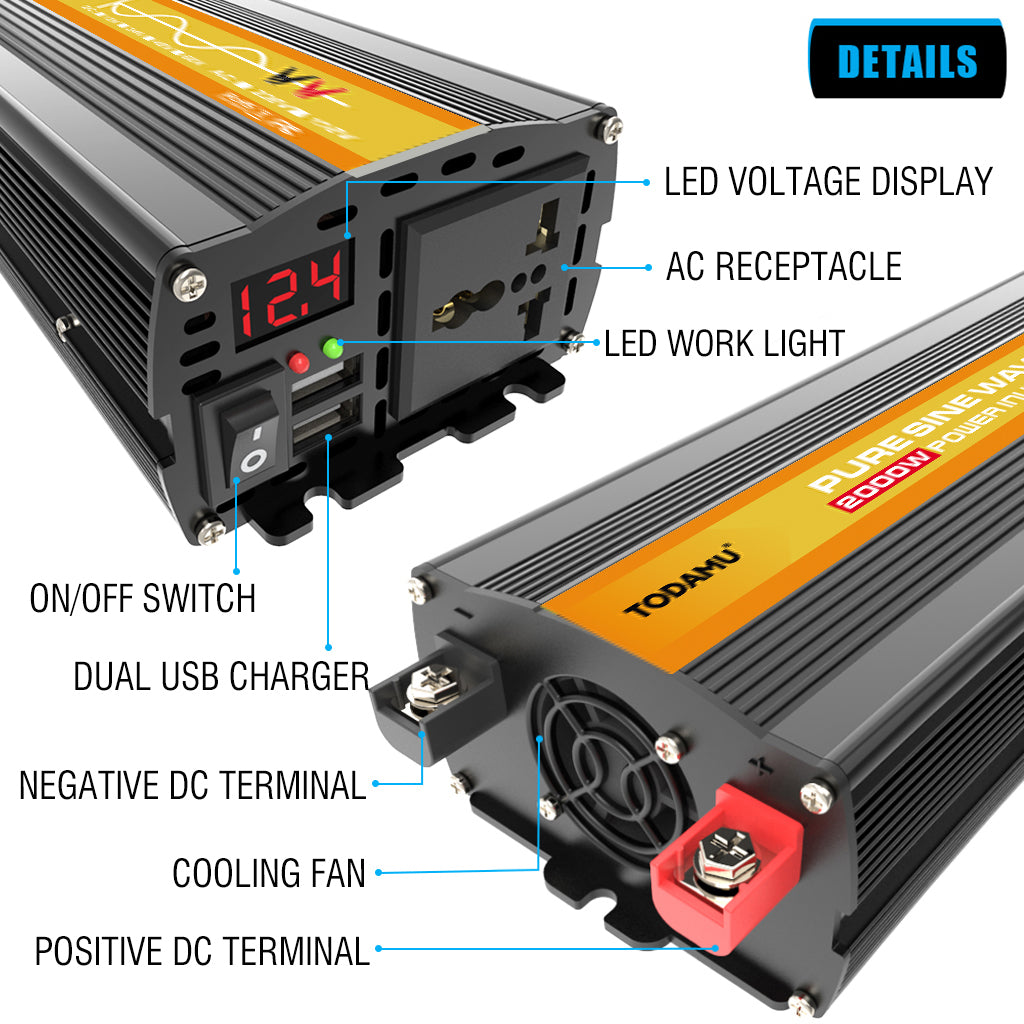

• [Pure Sine Wave] Provides clean 220V AC household power with 1 AC receptacle, LED voltage display, high-current DC terminals, and LED work lights. (≤1000W continuous load)

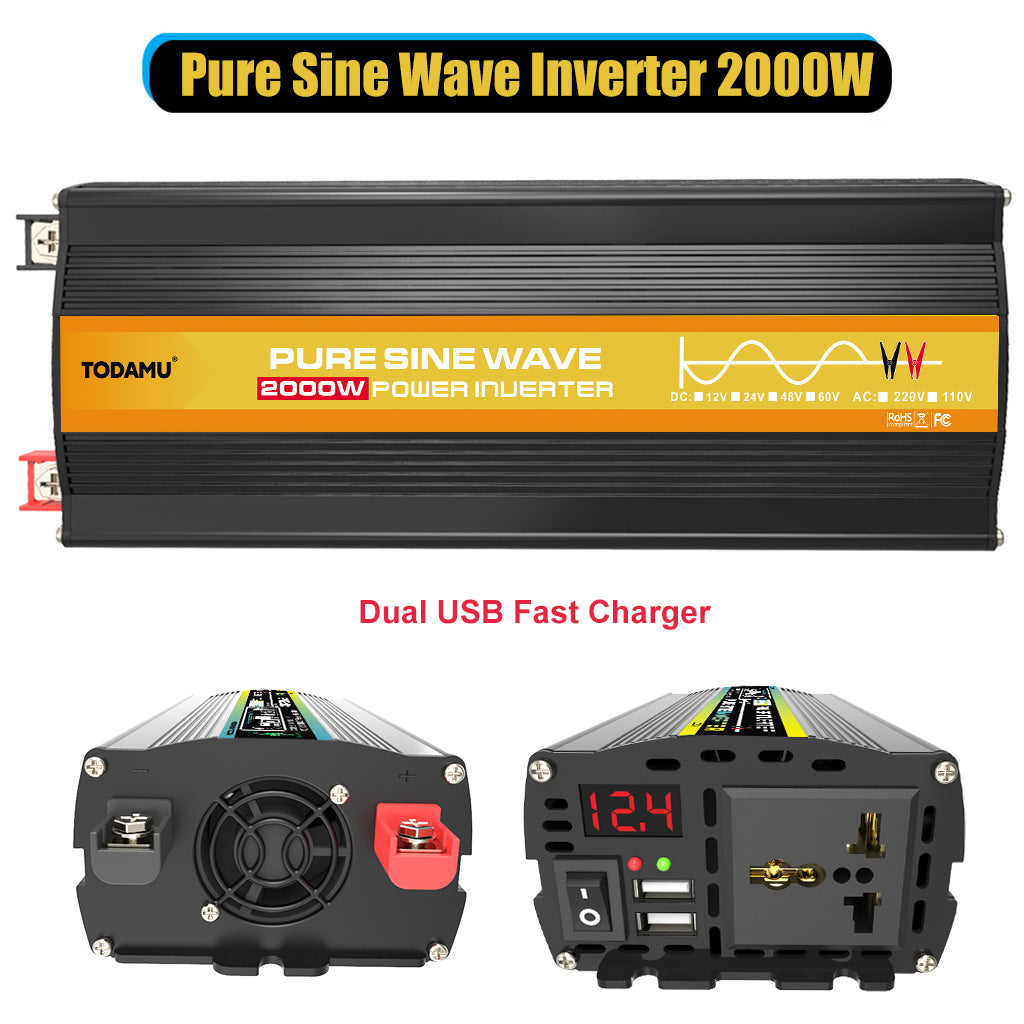

• [Fast Charging Dual USB] One AC outlet + two USB ports deliver quick charging for phones, laptops, medical rescue devices, and emergency equipment.
• [Strong & Durable] Aluminum alloy housing resists drops and bumps; integrated cooling fan reduces heat and prevents shortages.
• [LED Indicators] Green LEDs signal normal operation; red LEDs indicate protection status.
• [LED Voltage Display] Real-time battery voltage monitoring, reminding you when to recharge.
• [Wide Applications] Suitable for TVs, refrigerators, washing machines, microwaves, air conditioners, and other household appliances. Works in cars, RVs, or with solar systems.
• [Solar System Compatible] Combine an inverter + battery + solar charge controller + solar panel for a complete off-grid solar power system.
• [Multi-Protection] Built-in fuses and smart safety design provide overload, short circuit, low/high voltage, overheating, over-current, and reverse polarity protection.
• [Car Becomes RV] Power home appliances directly in your car for outdoor trips – watch TV, play games, and enjoy RV-like comfort.

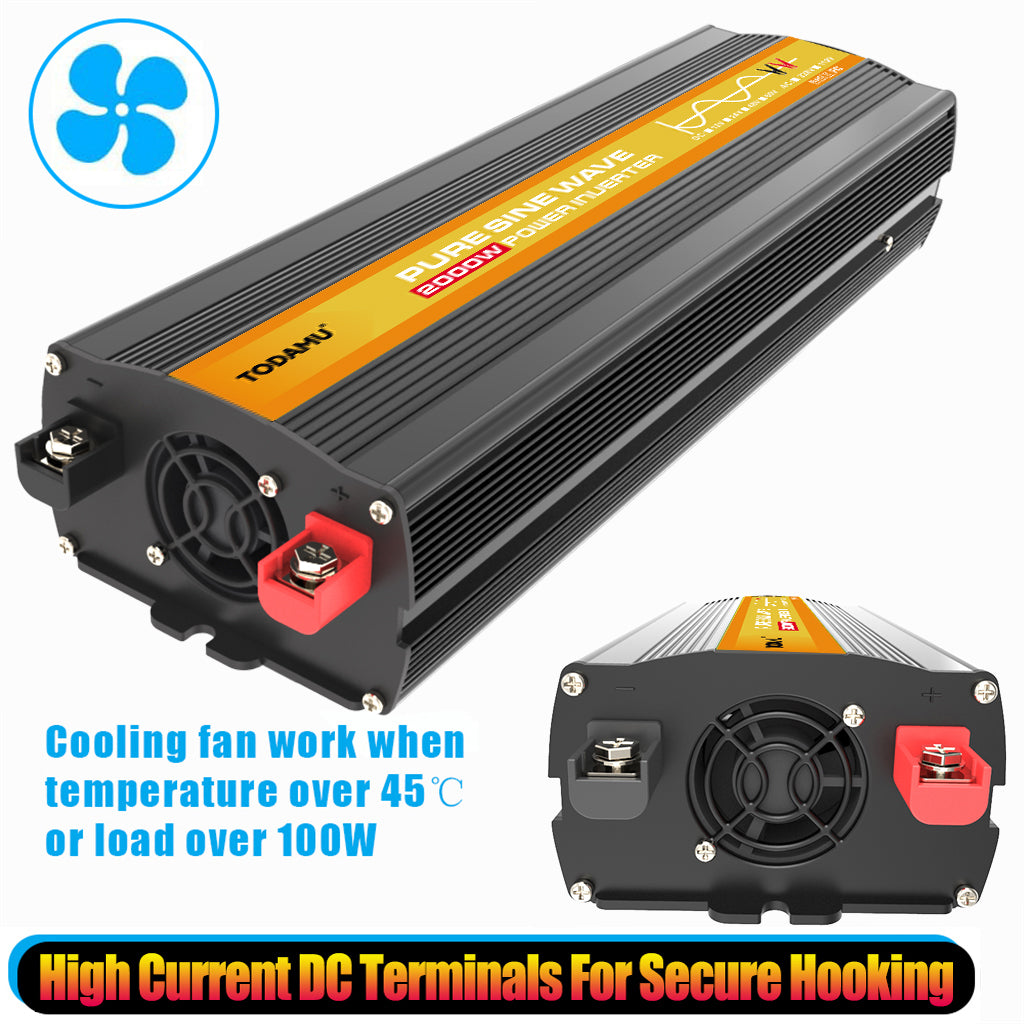

• [Silent Intelligent Cooling Fan] Cooling fan adjusts speed by load and temperature; auto-shuts down if overheating (>75℃) until safe to resume.

⚡ Features

• Input Options: 12V (cars), 24V (trucks), 48V & 60V (electric vehicles)
• Output Voltage Range: 110~130V / 210~230V
• Safe Input Voltage Range:
  • 12V: 9.8~15V
  • 24V: 20~28V
  • 48V: 44~53V
  • 60V: 58~68V
• 8 Safety Protections: Reverse polarity, low input voltage, high input voltage, over-current, short circuit, over-temperature, overload, internal fuses

🔋 Battery Usage Time Calculation

Working time depends on battery capacity and load power.
Formula: Working Time (hours) = Battery Capacity × Voltage × 0.8 × 0.9 / Load Power

Example: A 12V 60AH battery powering a 220V 100W bulb → 12×60×0.8×0.9 ÷ 100 = ≈5.2 hours

(0.8 = battery discharge coefficient, 0.9 = inverter efficiency)

❓ Choosing the Right Size Inverter

Select an inverter according to the total wattage of your appliances. Always choose a model rated at least 10–20% higher than your maximum load for safe and stable performance.
