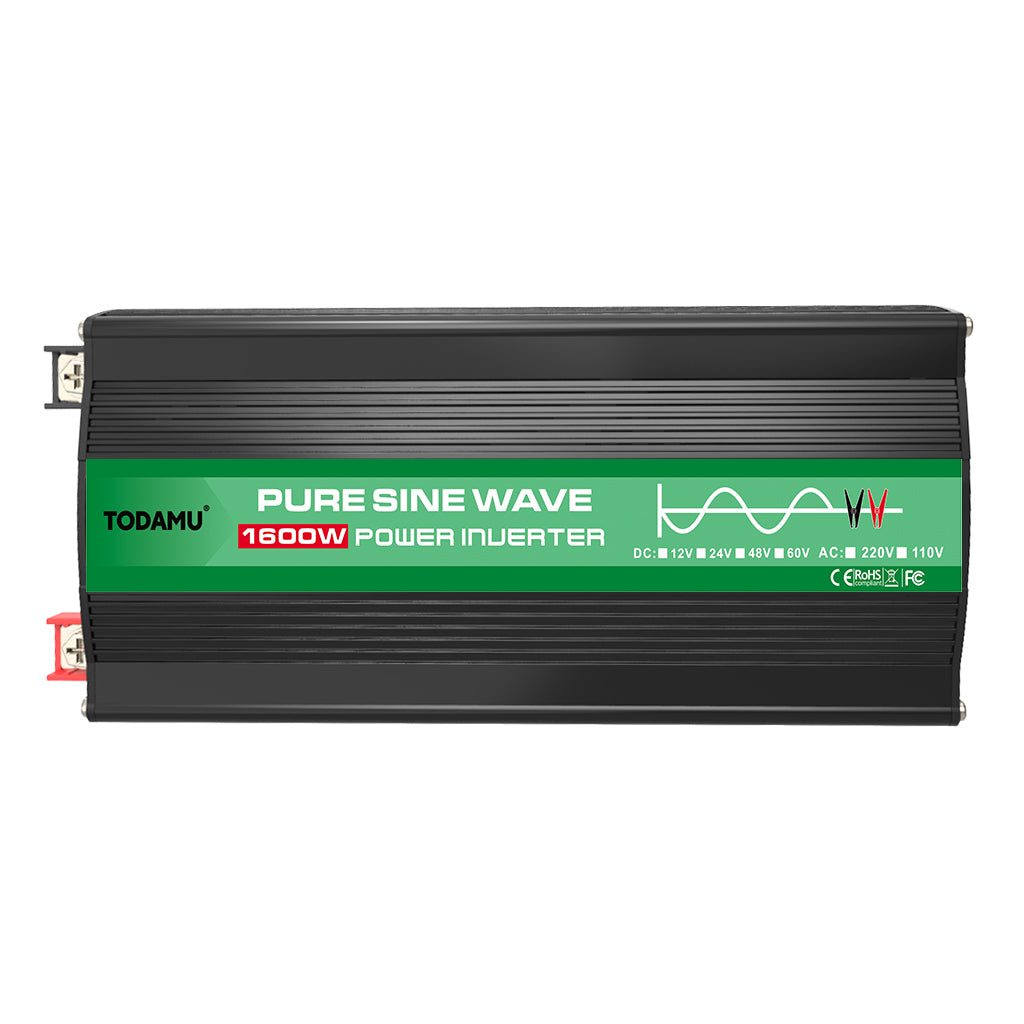

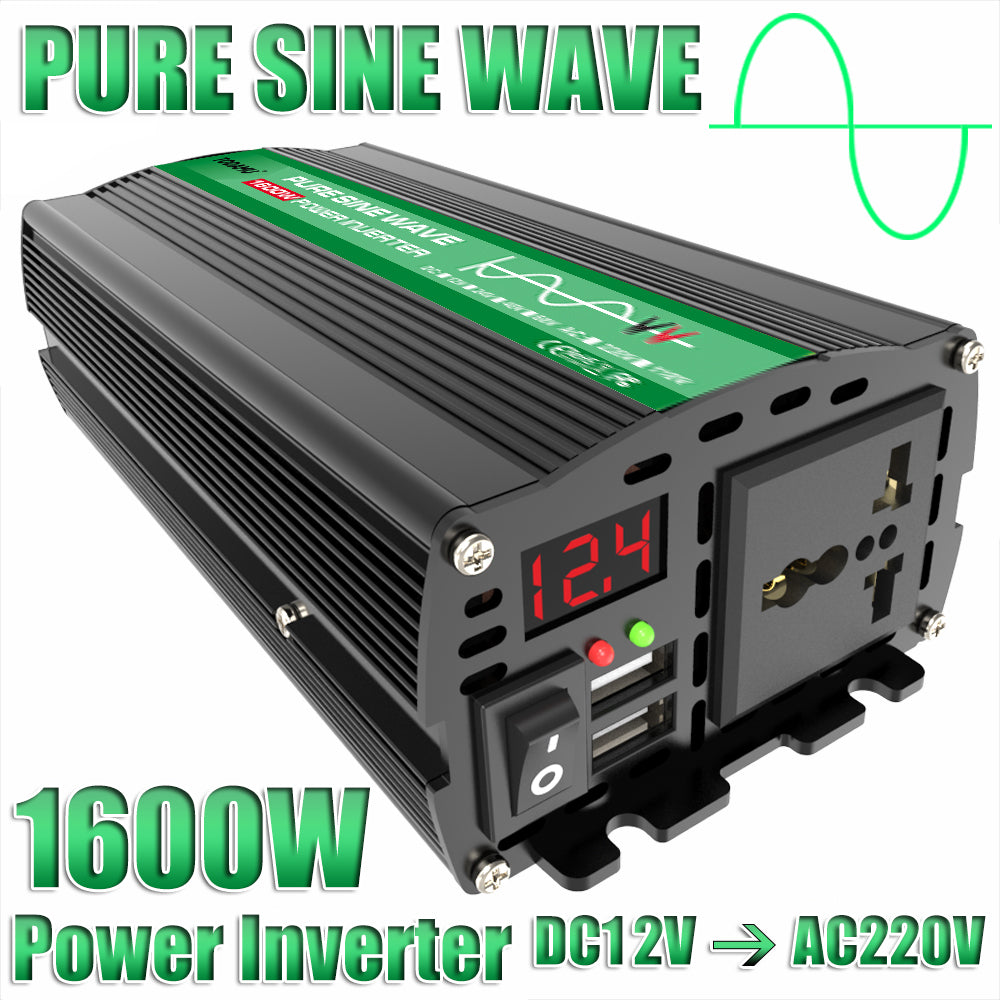

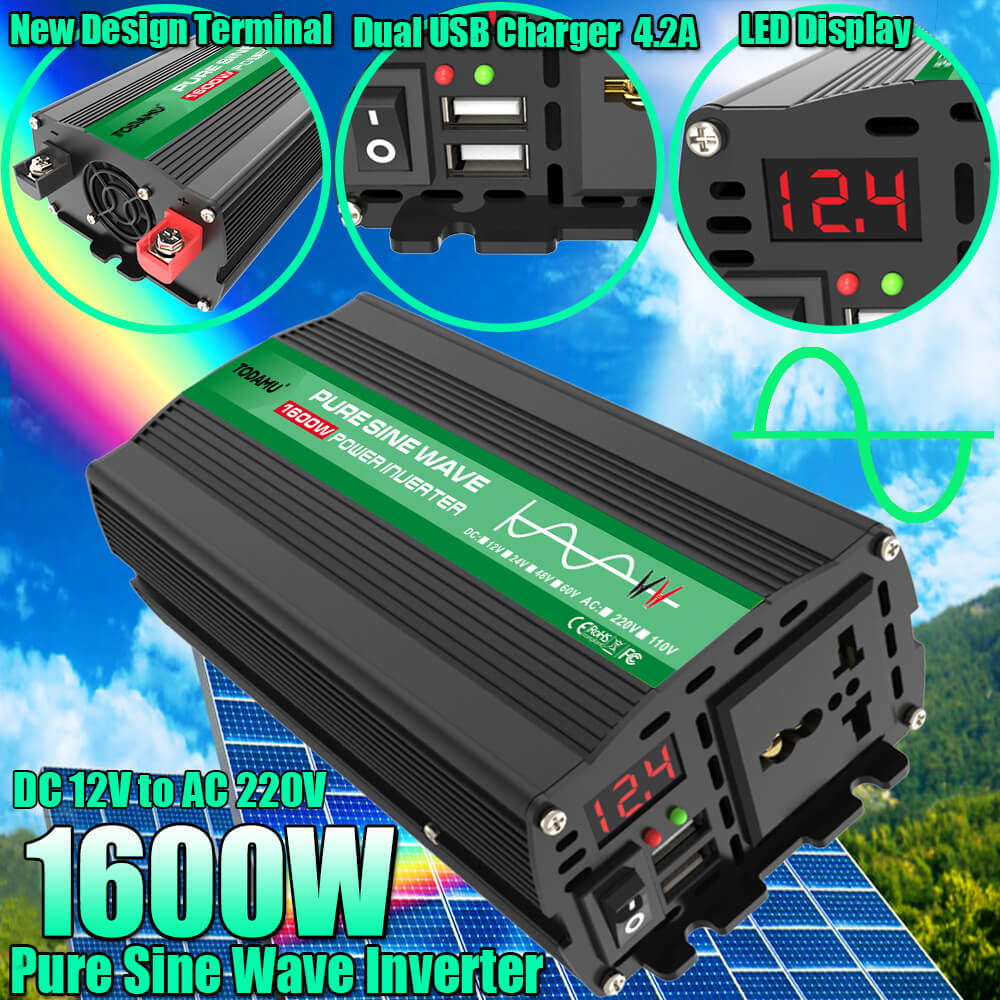

International Plug 1600W Pure Sine Wave Power Inverter

Specifications:

Model: HZ1600

Name: Pure sine wave power inverter

Input voltage: DC 12V/24V/48V/60V

Output voltage: AC 110V/220V

Output frequency: 50Hz(or ajust to 60Hz)

Peak Power: 1600W

Rated power: 800W

USB Charger Port: For the 12V Model, has 2 USB chargers

Weight: 1.4 kg

Product size: 24.5X10.3X6cm

Maximum Active Surge Rating (less than 1 second):1600W

Maximum AC Current per socket:8.33Ampere

Output Waveform: True/pure sine wave (<3% THD)

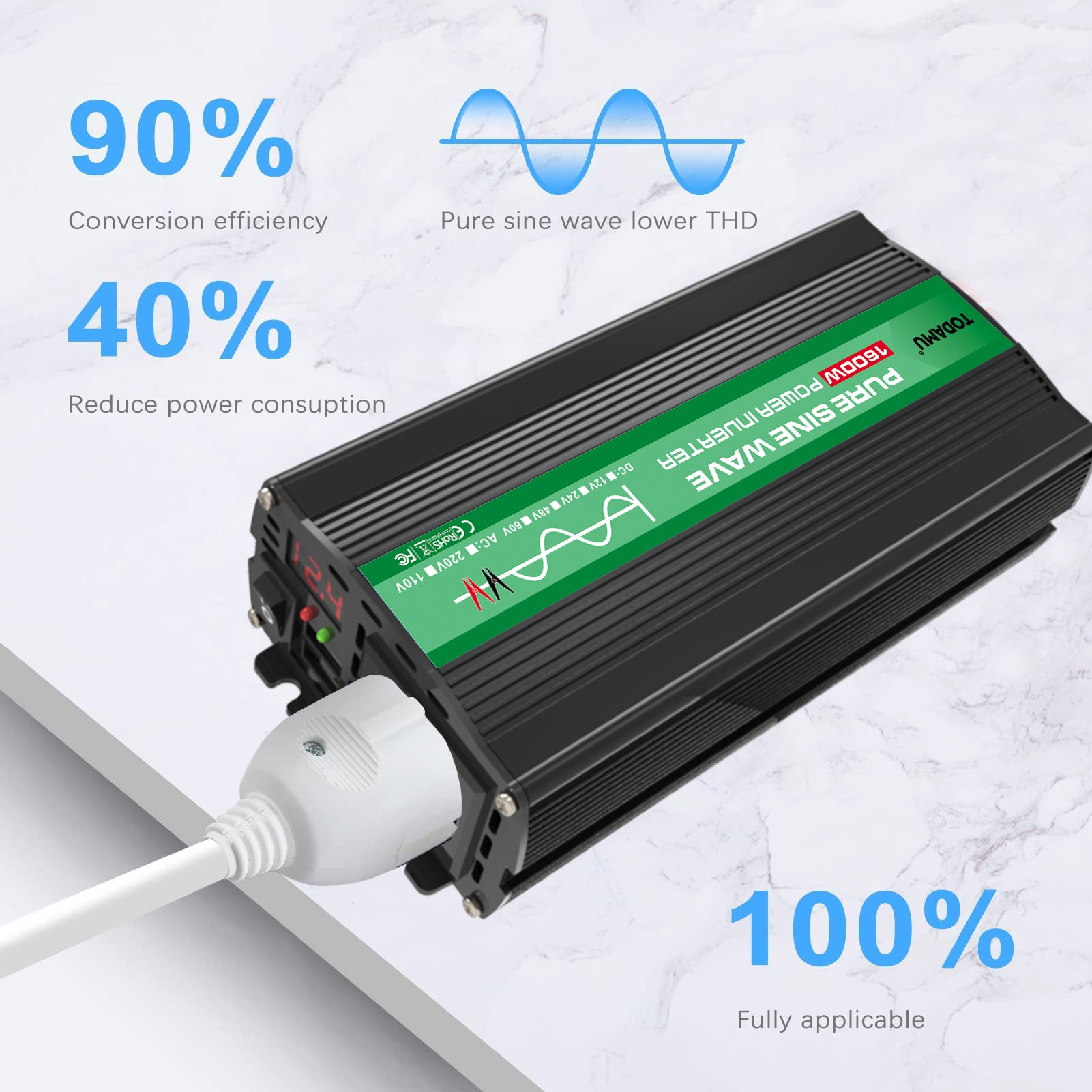

Efficiency: 90%

No Load Current Draw (DC side) <0.6 A

1600W Pure Sine Wave Power Inverter – 12V/24V/48V/60V DC to 110V/220V AC Converter

This 1600W Pure Sine Wave Inverter provides 800W continuous output and 1600W surge capability, converting 12V24V/48V/60V DC to 110V/220V AC household power. Equipped with an AC outlet, dual USB ports, an LED display, and multiple protection functions, it is perfect for car, RV, home backup, camping, and solar power systems.

✅ Advantages

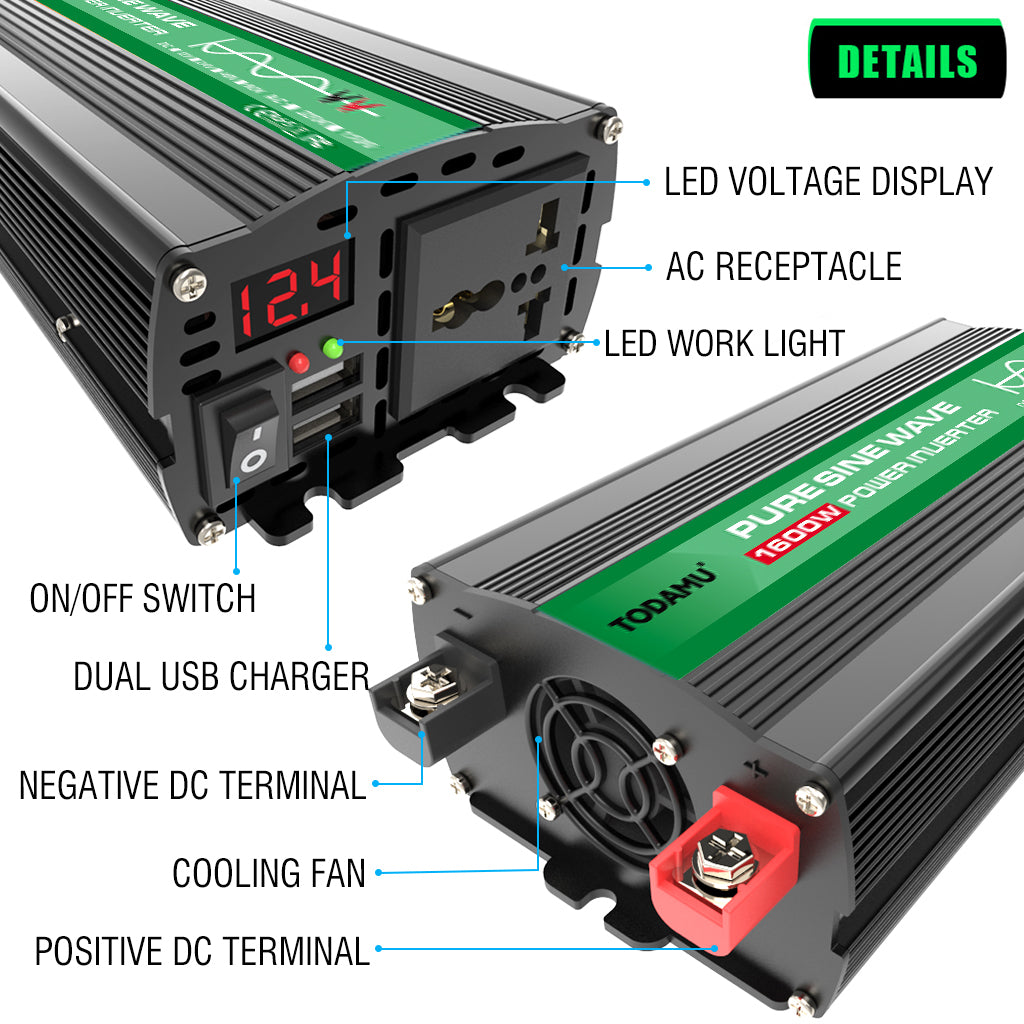

• [Pure Sine Wave] Converts 12V/24V/48/60V DC to 110V/220V AC household power with stable current output. Includes 1 AC outlet, LED voltage display, high-current DC terminals, and dual LED work lights. (≤800W continuous load)

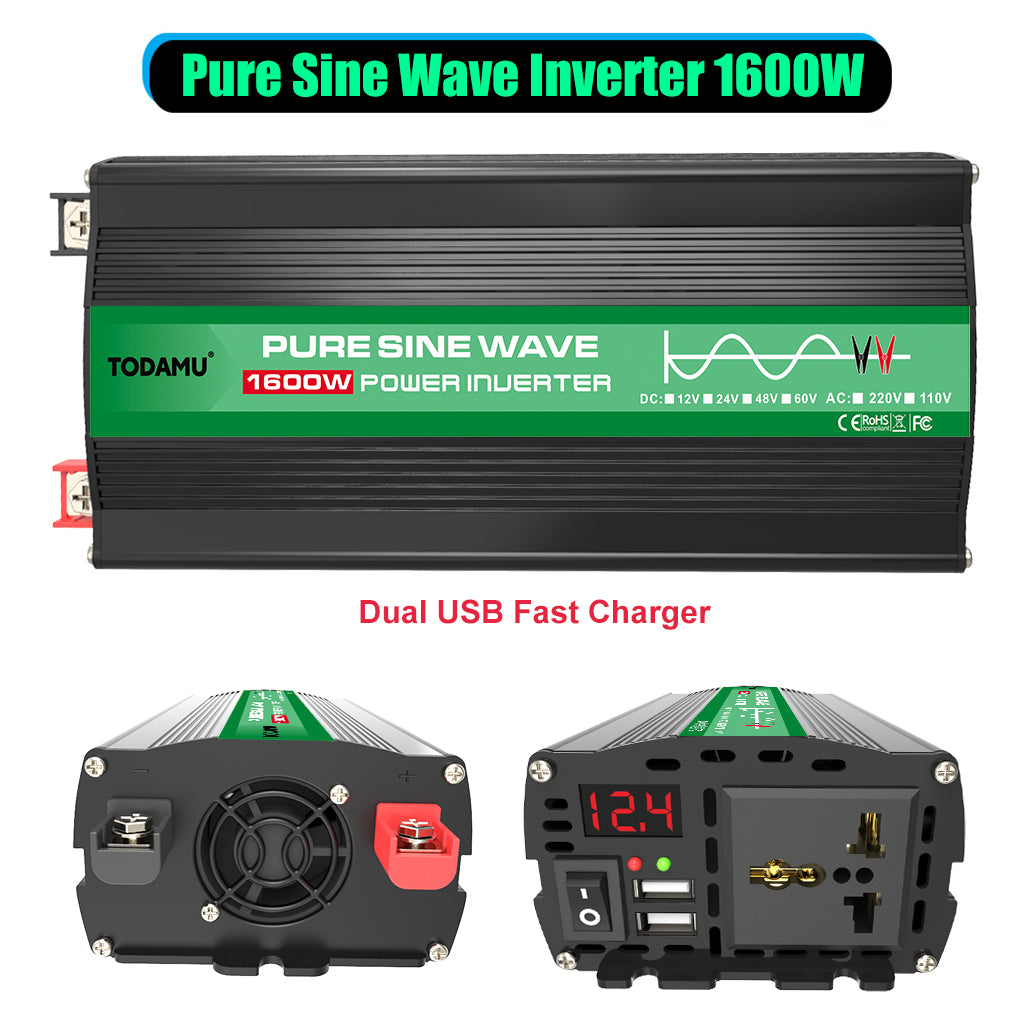

• [Fast Charging Dual USB] One AC outlet + two USB ports for quick charging of phones, laptops, medical devices, and emergency equipment – reliable as an emergency power supply.
• [Strong & Durable] Aluminum alloy housing resists drops and bumps; intelligent cooling fan reduces heat and prevents shortages.
• [LED Indicators] Green LEDs show normal operation; red LEDs alert you when protection mode is active.

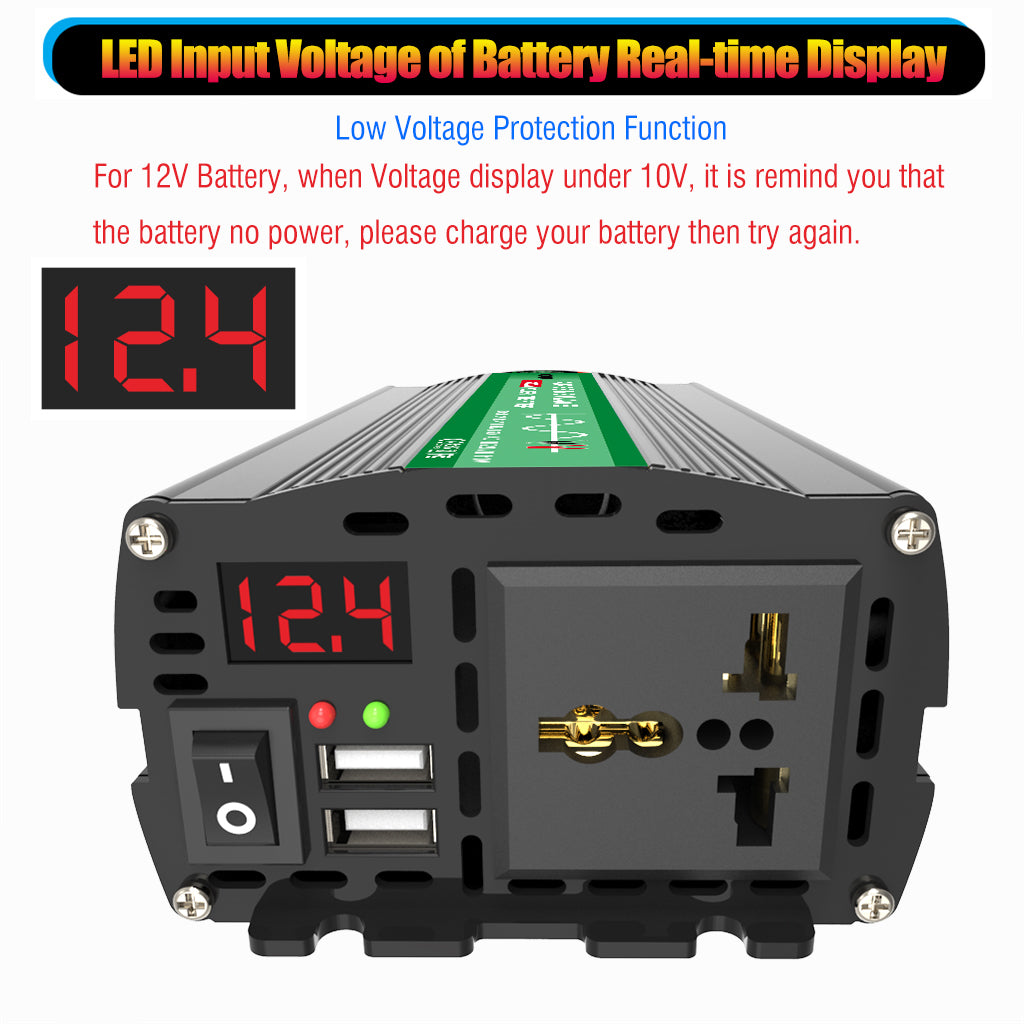

• [LED Voltage Display] Real-time battery voltage monitoring, reminding you to recharge in time.
• [Wide Applications] Powers TVs, refrigerators, washing machines, microwaves, and air conditioners. Suitable for use in cars, RVs, or solar systems.
• [Solar System Compatible] Combine with battery + solar panel + charge controller for a complete off-grid solar power solution.
• [Multi-Protection] Built-in fuses with safeguards against over-voltage, under-voltage, overload, short circuit, over-current, overheating, and reverse polarity.
• [Car Becomes RV] Run household appliances in your car, enjoy entertainment, and make outdoor trips feel like home.

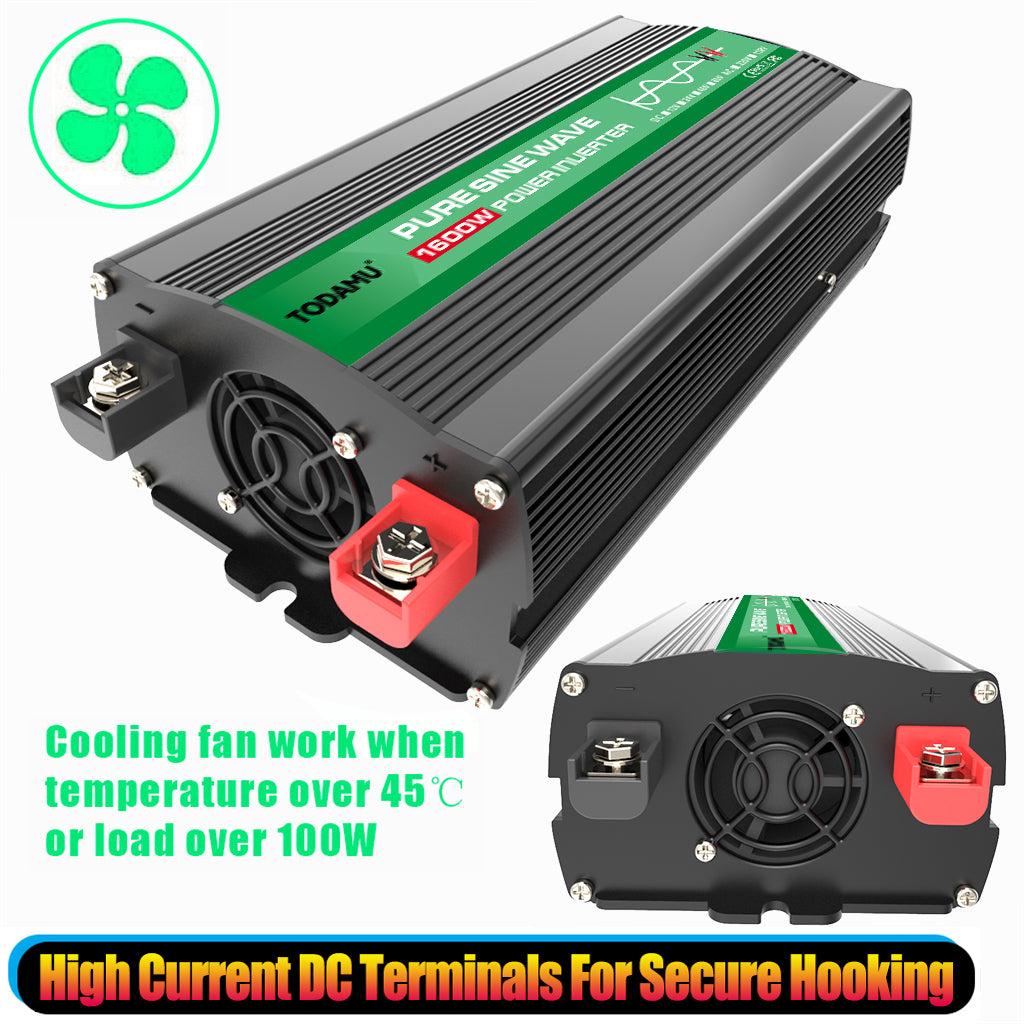

• [Silent Cooling Fan] Intelligent fan adjusts speed according to load and temperature; auto-shuts down safely if overheating occurs (>75℃).

⚡ Features

• Input Options: 12V (cars), 24V (trucks), 48V & 60V (electric vehicles)
• Output Voltage Range: 110~130V / 210~230V
• Safe Input Voltage Range:
  • 12V: 9.8~15V
  • 24V: 20~28V
  • 48V: 44~53V
  • 60V: 58~68V
• 8 Safety Protections: Reverse polarity, low voltage, high voltage, over-current, short circuit, over-temperature, overload, internal fuses

🔋 Battery Usage Time Calculation

Working time depends on battery capacity and load power.
Formula: Working Time (hours) = Battery Capacity × Voltage × 0.8 × 0.9 / Load Power

Example: A 12V 60AH battery powering a 220V 100W bulb → 12×60×0.8×0.9 ÷ 100 = ≈5.2 hours

(0.8 = battery discharge coefficient, 0.9 = inverter efficiency)

❓ Choosing the Right Size Inverter

Select an inverter based on the total wattage of your devices. Always choose an inverter rated at least 10–20% higher than your maximum load for safe and stable performance.
