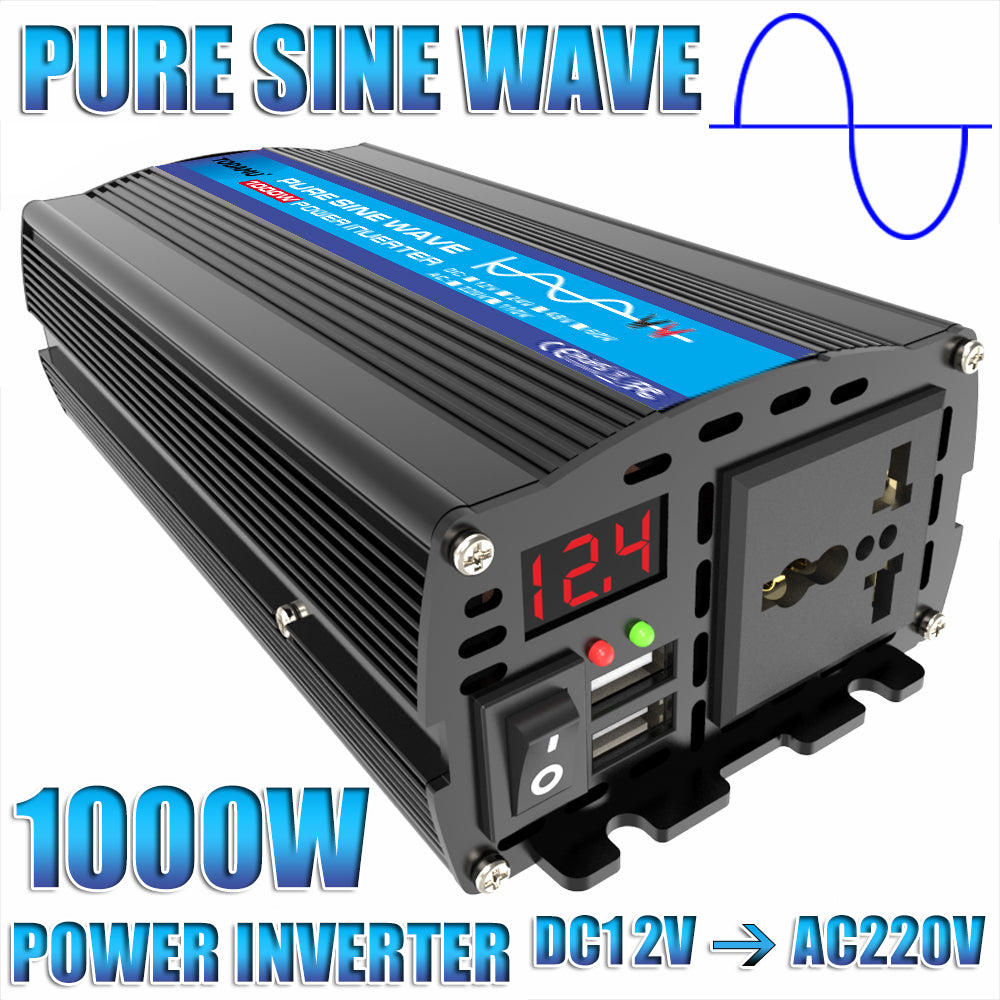

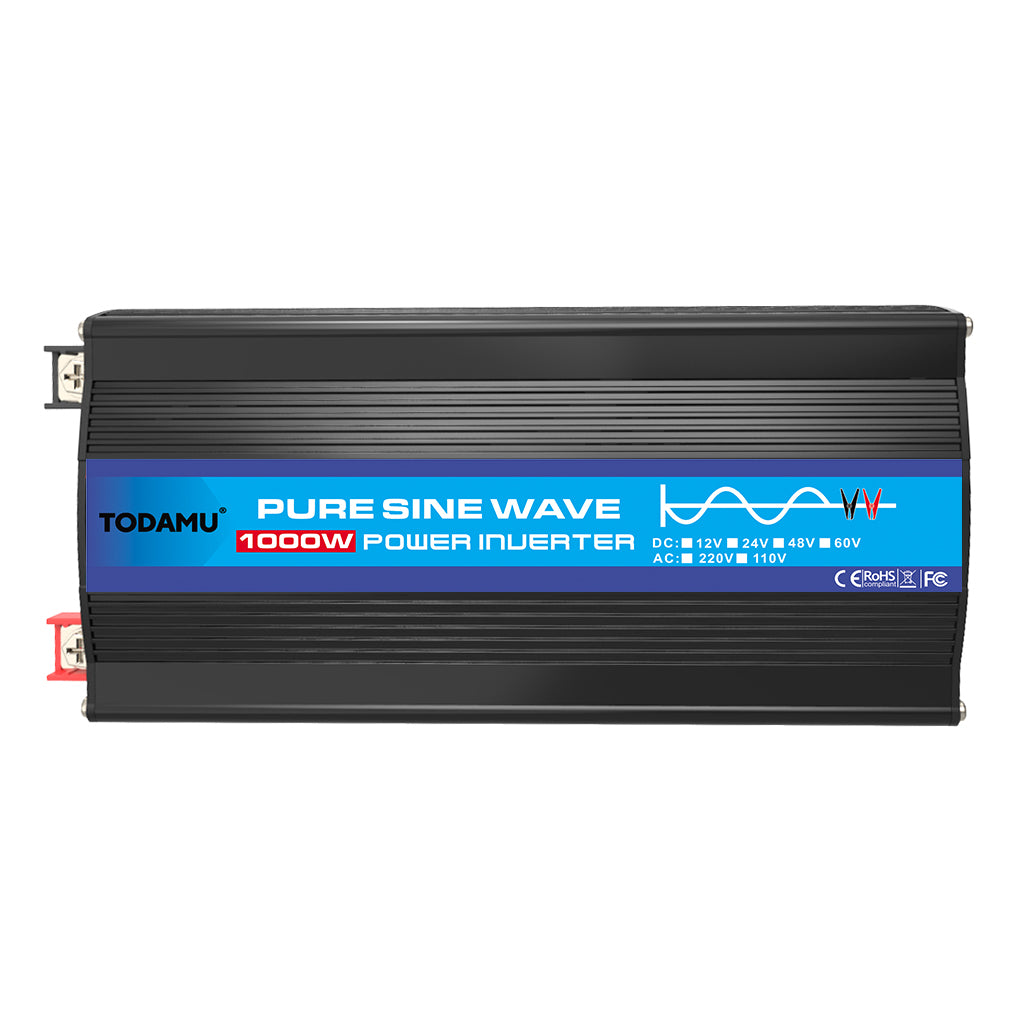

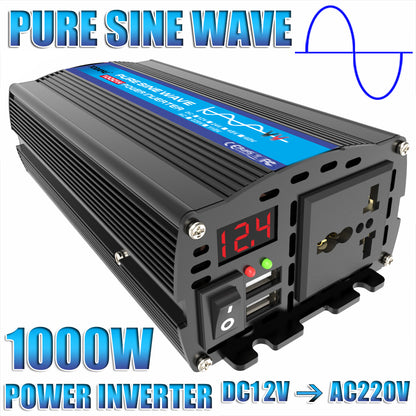

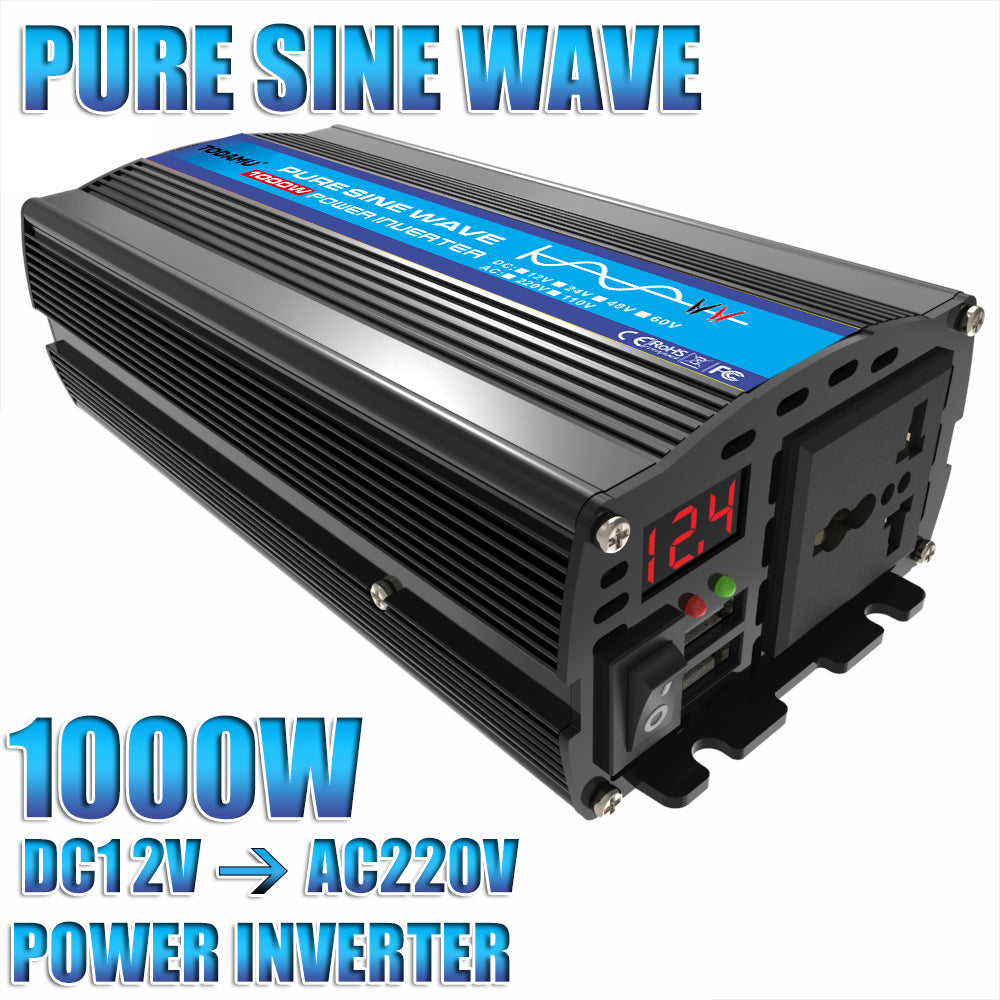

International Plug 1000W Pure Sine Wave Power Inverter

Specifications:

Model: HZ1000

Name: Pure sine wave power inverter

Input voltage: DC 12V/24V/48V/60V

Output voltage: AC 110V/220V

Output frequency: 50Hz(or ajust to 60Hz)

Peak Power: 1000W

Rated power: 500W

USB Charger Port: For the 12V Model, has 2 USB chargers

Weight: 0.8kg

Product size: 21X10.3X6cm

Maximum Active Surge Rating (less than 1 second):1000W

Maximum AC Current per socket:8.33Ampere

Output Waveform: True/pure sine wave (<3% THD)

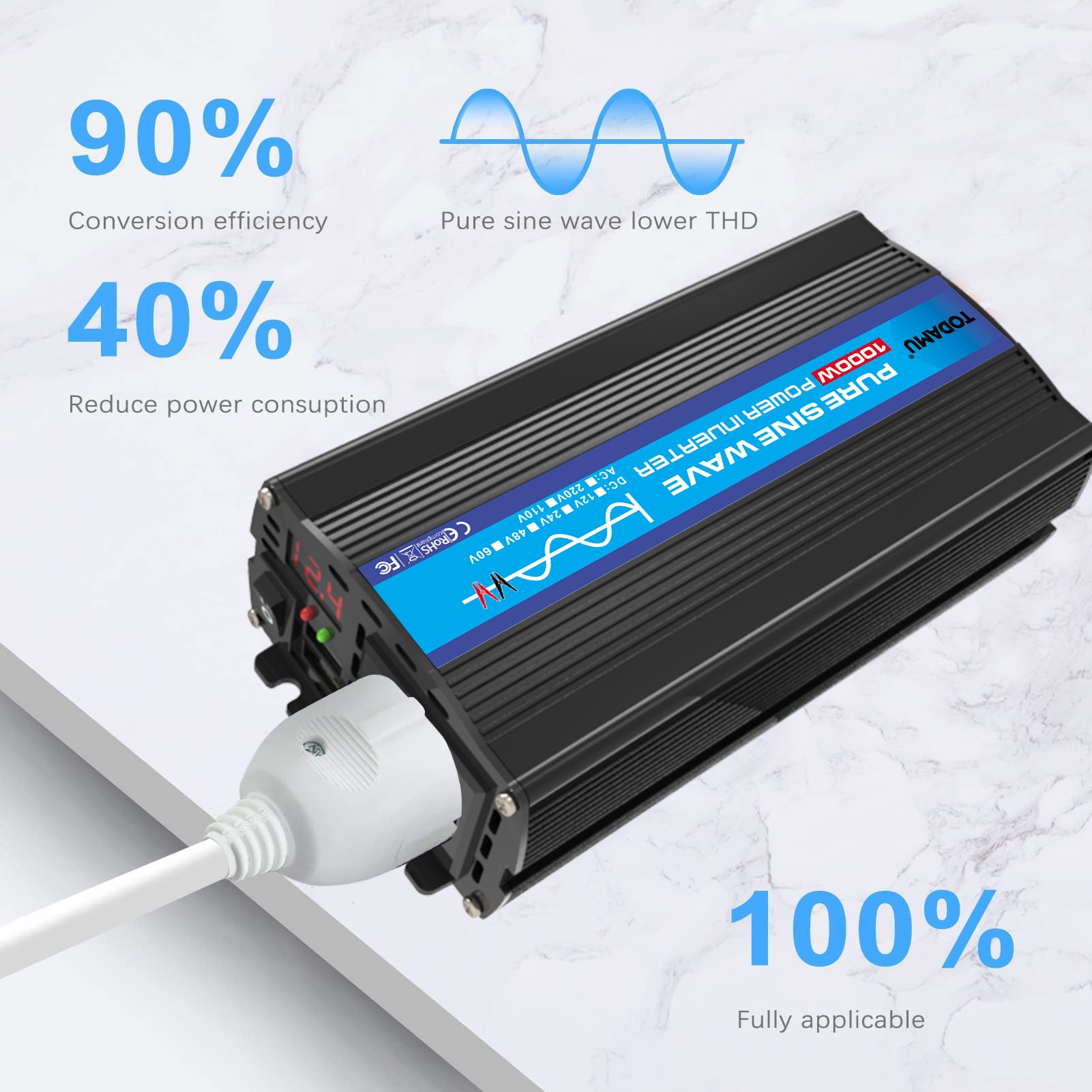

Efficiency: 90%

No Load Current Draw (DC side) <0.6 A

1000W Pure Sine Wave Power Inverter – Multi-Voltage DC to AC Converter

This Pure Sine Wave Inverter converts 12V / 24V / 48V / 60V DC to household 110V / 220V AC. With continuous 500W output and 1000W surge capability, it provides safe, stable power for your home appliances, electronics, and emergency backup.

✅ Advantages

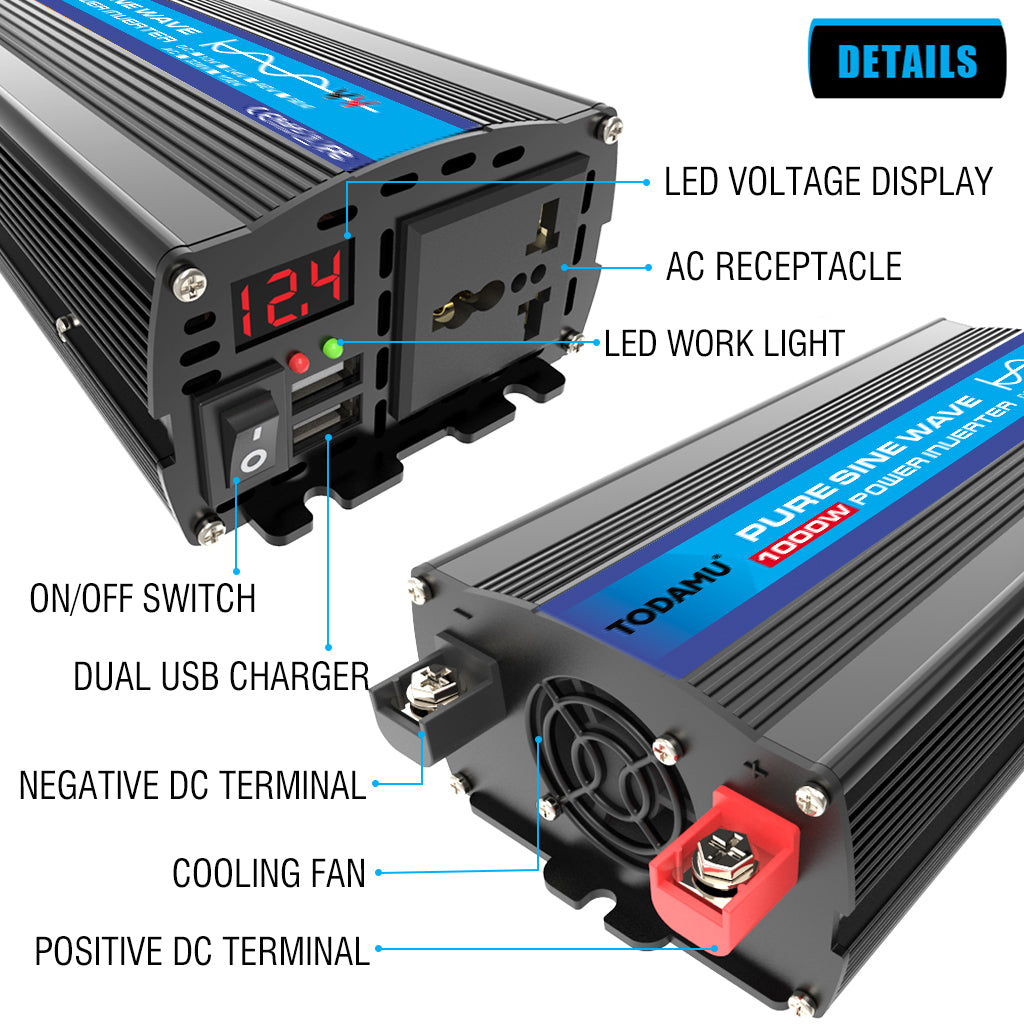

• [Pure Sine Wave] Delivers stable 220V AC household power with one AC outlet, LED voltage display, high-current DC terminals, and dual LED work lights. (Max continuous 500W, peak 1000W)

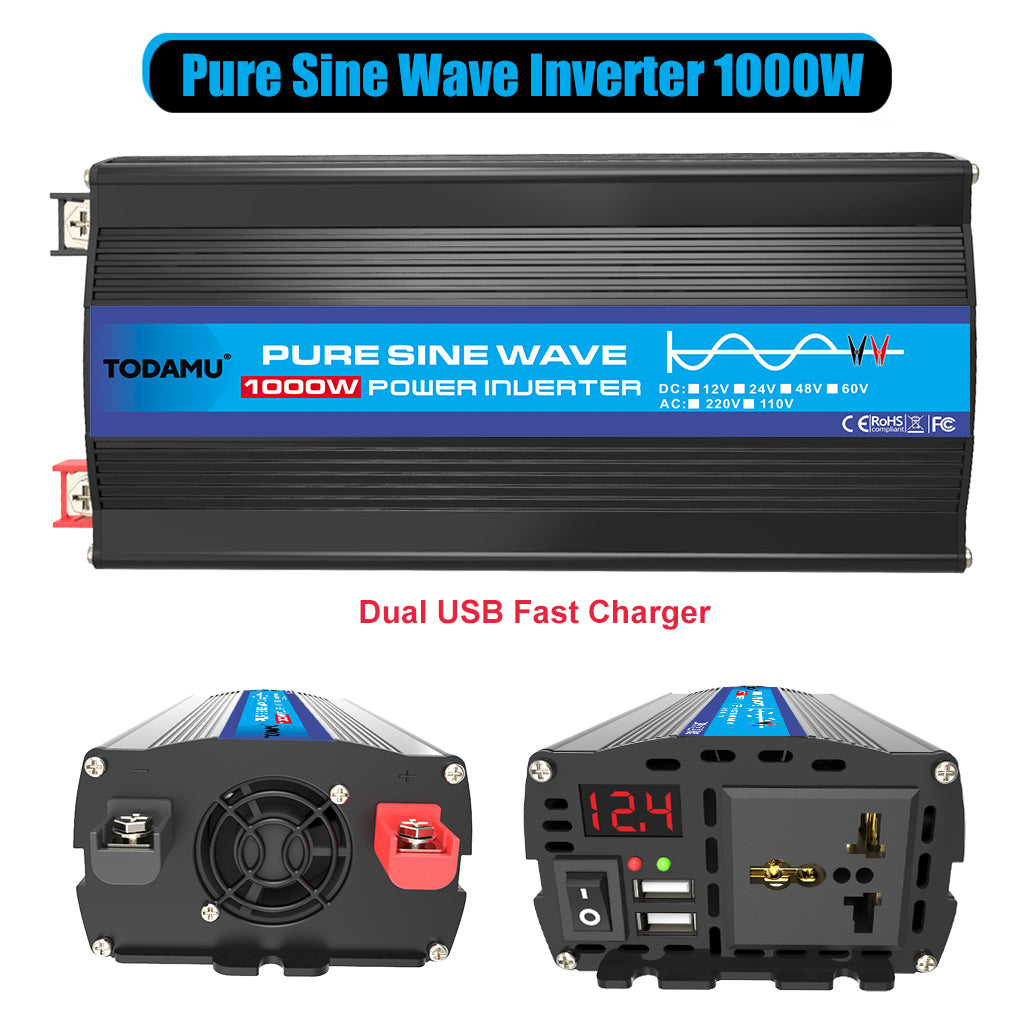

• [Fast Charging Dual USB] One AC outlet + two USB ports support fast charging for phones, laptops, medical devices, and emergency equipment. Perfect as a reliable backup power supply.
• [Strong & Durable] Aluminum alloy housing resists drops and bumps, while the intelligent cooling fan reduces heat and prevents overheating.
• [LED Indicators] Green LEDs show normal operation; red LEDs indicate protection mode for safe use.
• [LED Voltage Display] Real-time monitoring of battery input voltage with reminders for charging at low voltage.
• [Wide Applications] Suitable for TV, refrigerator, washing machine, air conditioner, microwave, and 220V loads. Perfect for cars, RVs, camping, and solar power systems.

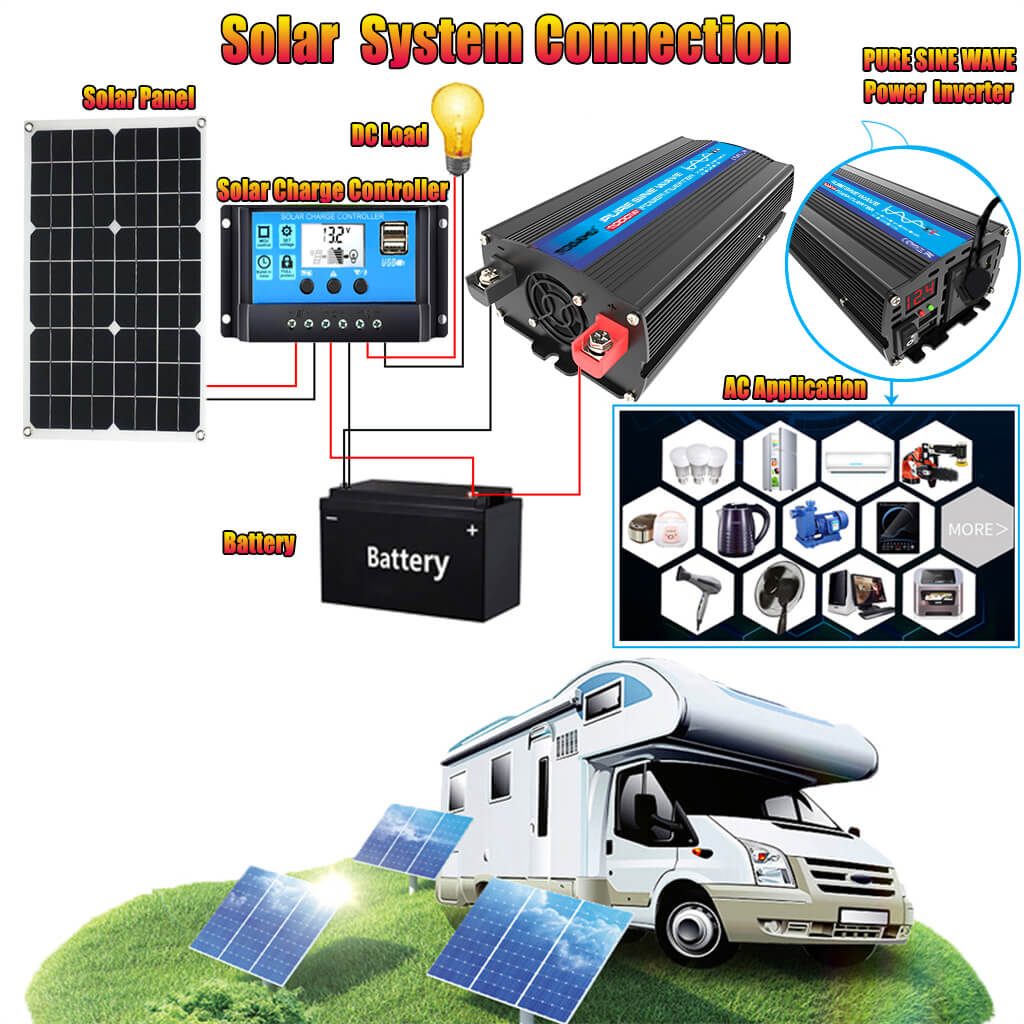

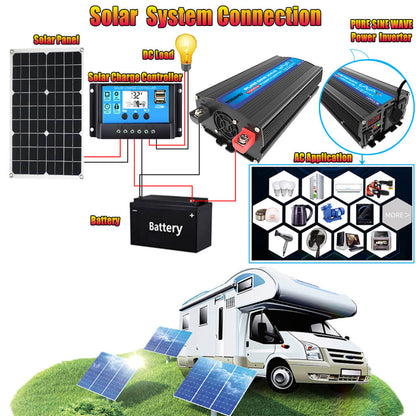

• [Solar System Ready] Combine with battery, solar panel, and charge controller to build a complete solar power system – ideal for outdoor and off-grid use.
• [Multi-Protection] Built-in fuses and safety design provide overload, short circuit, low/high voltage, overheat, and reverse polarity protection.
• [Car Becomes RV] Power most of your household appliances directly from your car, making outdoor trips more convenient and comfortable.

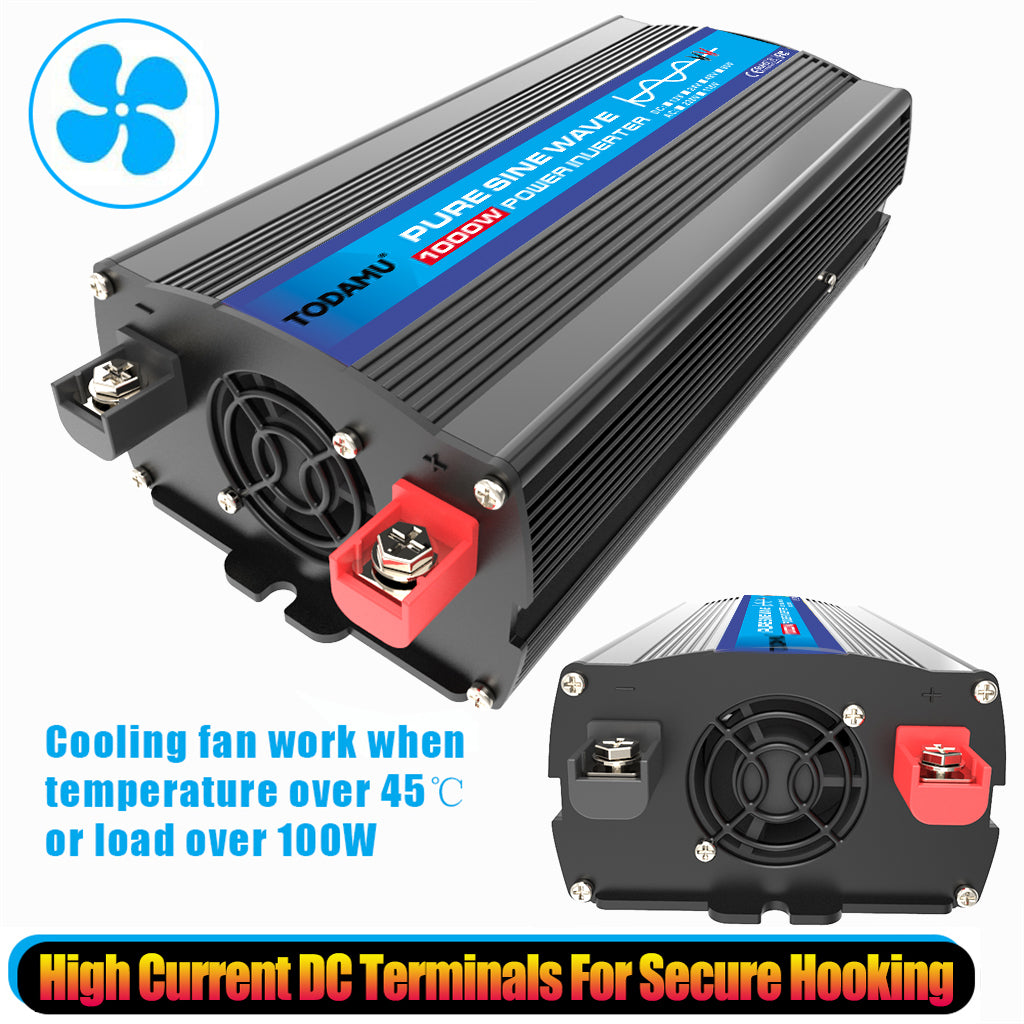

• [Silent Cooling Fan] Intelligent fan adjusts speed by load and temperature, reducing noise. Auto protection activates above 75℃.

⚡ Features

• Input Options: 12V for cars, 24V for trucks, 48V & 60V for electric vehicles
• Output Voltage Range: 110~130V or 210~230V
• Safe Input Ranges:
  • 12V: 9.8~15V
  • 24V: 20~28V
  • 48V: 44~53V
  • 60V: 58~68V
• 8 Safety Protections: Reverse polarity, low/high input voltage, over-current, short circuit, over-temperature, overload, internal fuses

🔋 Battery Usage Time Calculation

Working time depends on battery capacity and load power. Formula: Working Time (hours) = Battery Capacity × Voltage × 0.8 × 0.9 / Load Power

Example: A 12V 60AH battery powering a 220V 100W bulb → 12×60×0.8×0.9 ÷ 100 = ≈5.2 hours

(0.8 = discharge coefficient, 0.9 = inverter efficiency)

❓ What Size Power Inverter Do I Need?

The right size depends on the total watts (or amps) of your appliances. Always choose an inverter rated at least 10–20% higher than your largest load to ensure stable performance.
