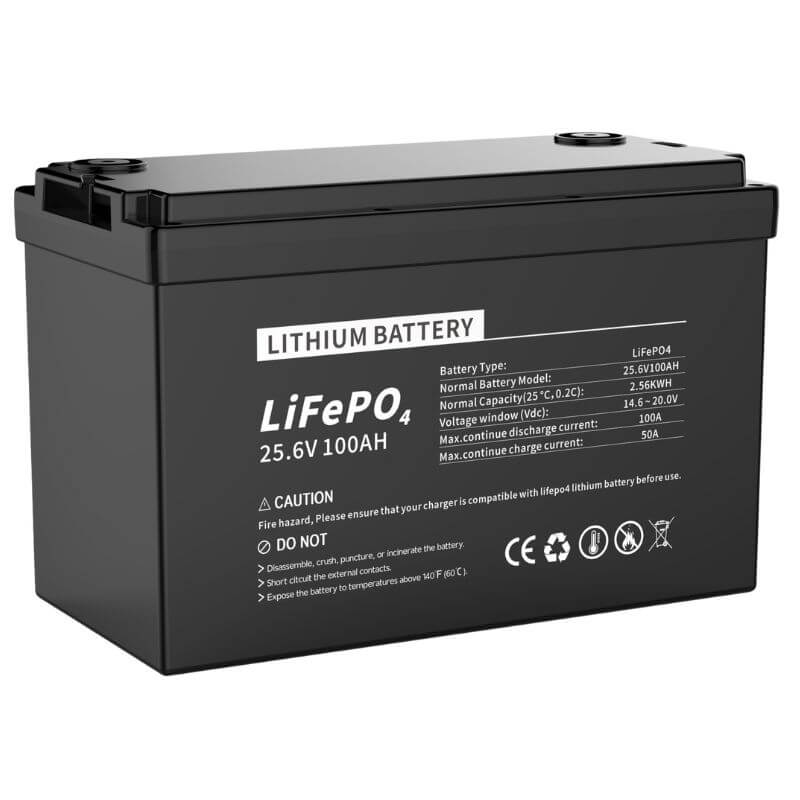

HD PLUS 12.8V/25.6V 100Ah–314Ah Rechargeable LiFePO4 Battery

 Product Model Overview

• Model Range: HD PLUS 12.8V100AH / 12.8V200AH / 12.8V280AH / 12.8V314AH / 25.6V100AH / 25.6V206AH

• Battery Type: LiFePO4 (Lithium Iron Phosphate)

• Rated Capacity: 1280Wh ~ 4019Wh

• Operating Voltage Range: 10.0V–14.6V (12.8V series) / 14.6V–20.0V (25.6V series)

• Float Charge Voltage: 14.0V (12.8V series) / 28.0V (25.6V series)

 Electrical Performance

• Max Continuous Charge Current: 50A ~ 100A

• Max Continuous Discharge Current: 100A ~ 200A

• Max Pulse Discharge Current: 150A ~ 300A (1 second)

• Terminal: M8

 Protection Features

• Overcharge protection

• Over-discharge protection

• Overcurrent protection

• Short-circuit protection

• Over-temperature protection

• Built-in Battery Management System (BMS) for stability and safety

 Operating Environment

• Storage Temperature: 0℃ ~ 30℃

• Operating Temperature: -10℃ ~ +50℃

• Humidity: 0 ~ 95% (non-condensing)

• Altitude: ≤1500m

• Storage Duration: 6 months at 25℃

 Dimensions & Weight

• Size Range: 331×171×218 mm to 523×269×218 mm

• Weight: 10.0kg ~ 35.5kg

• Protection Grade: IP65 (dustproof & waterproof)

 Safety & Certification

• Complies with UN38.3, MSDS international safety standards

• Suitable for solar energy systems, home energy storage, industrial backup, and RV applications
