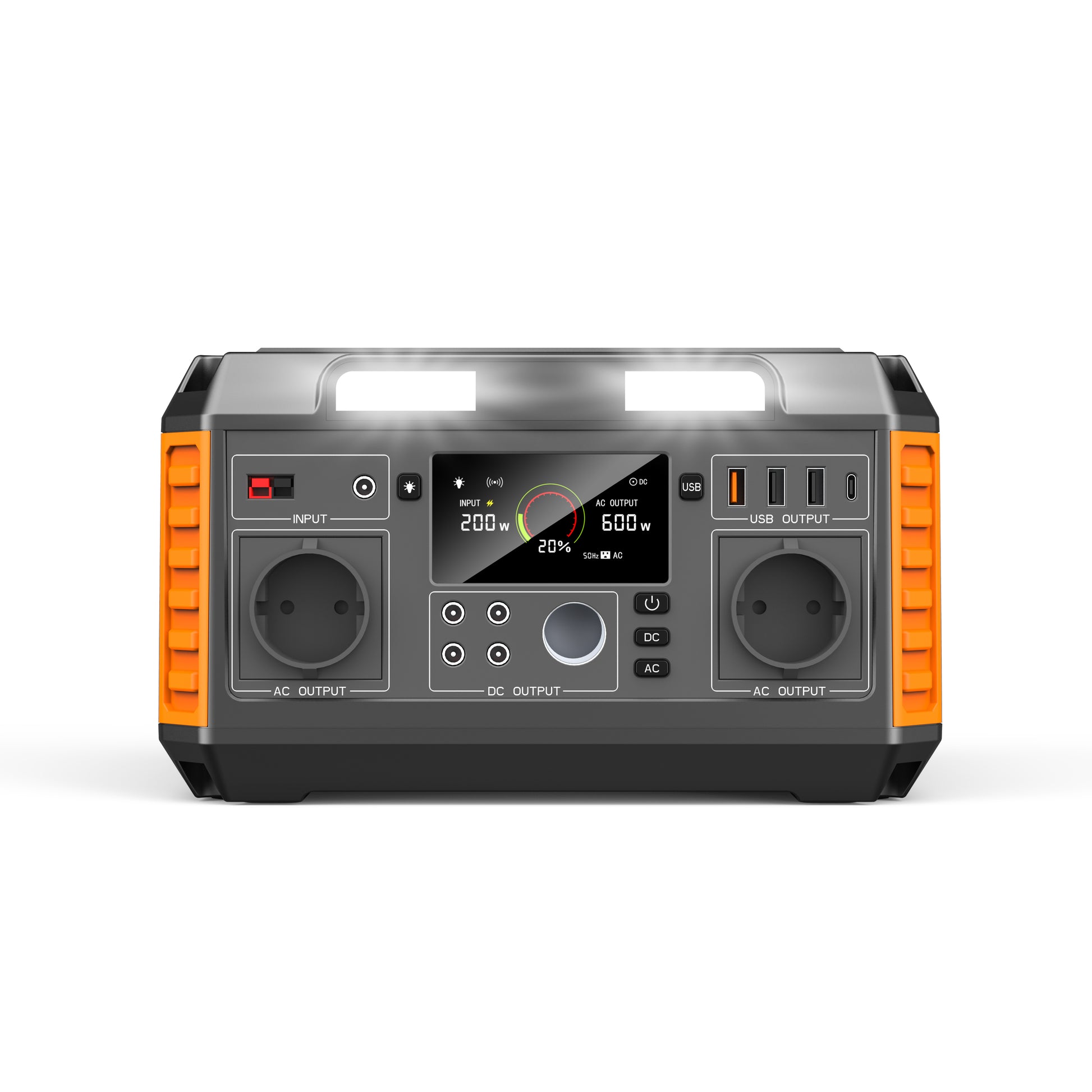

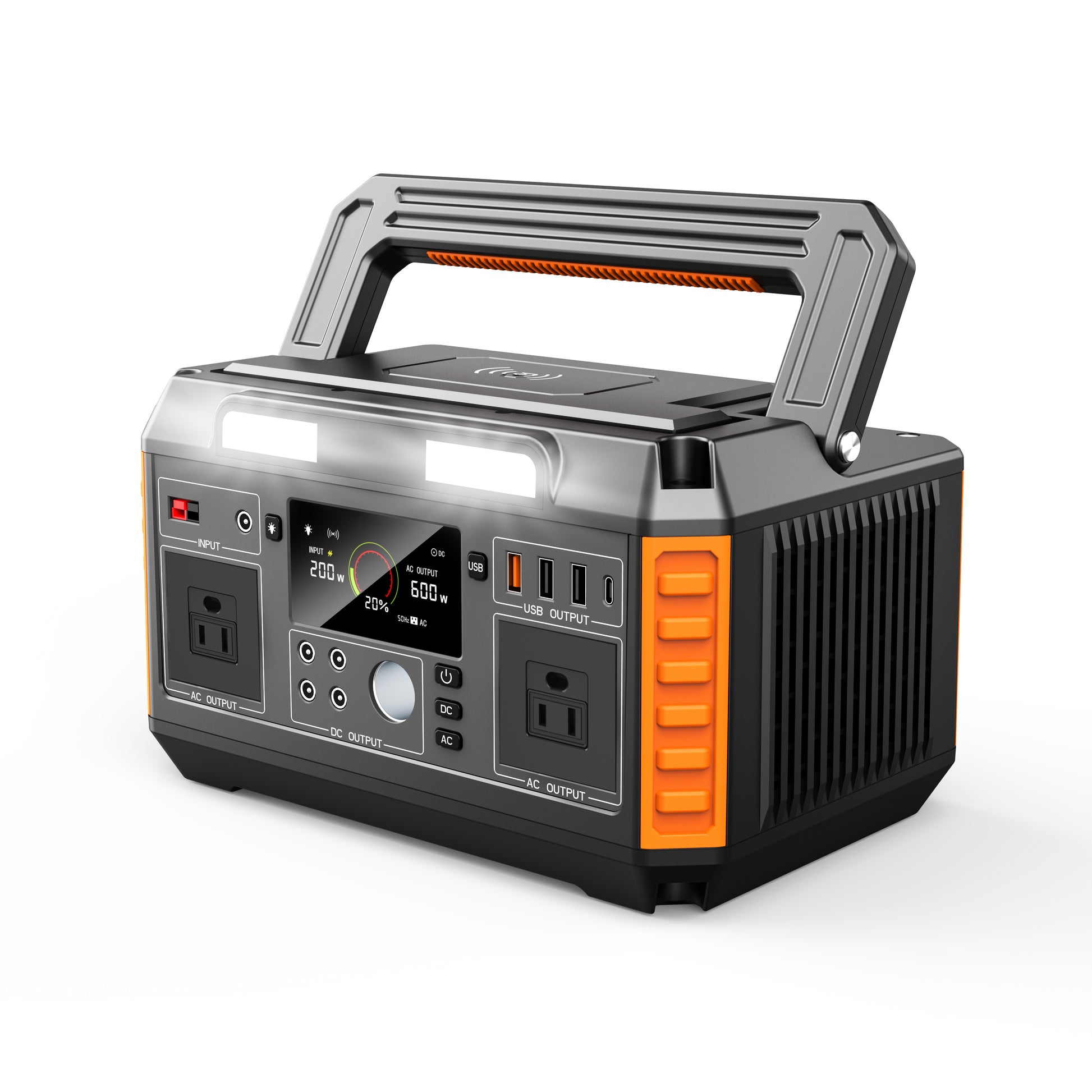

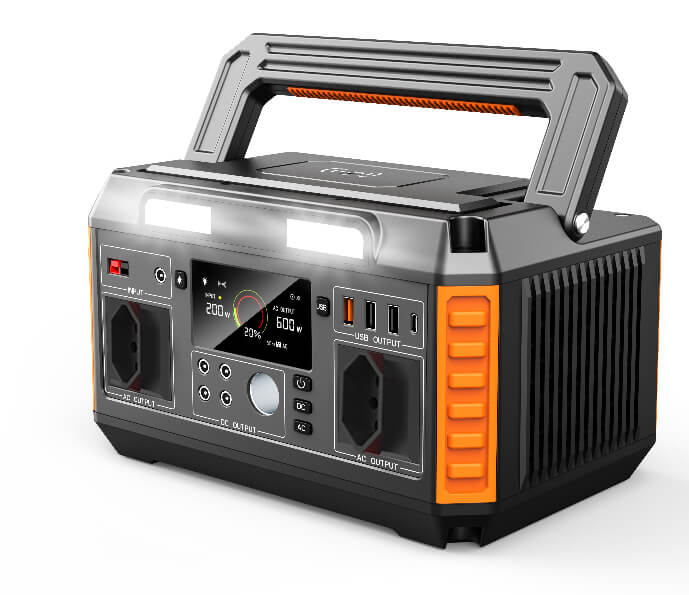

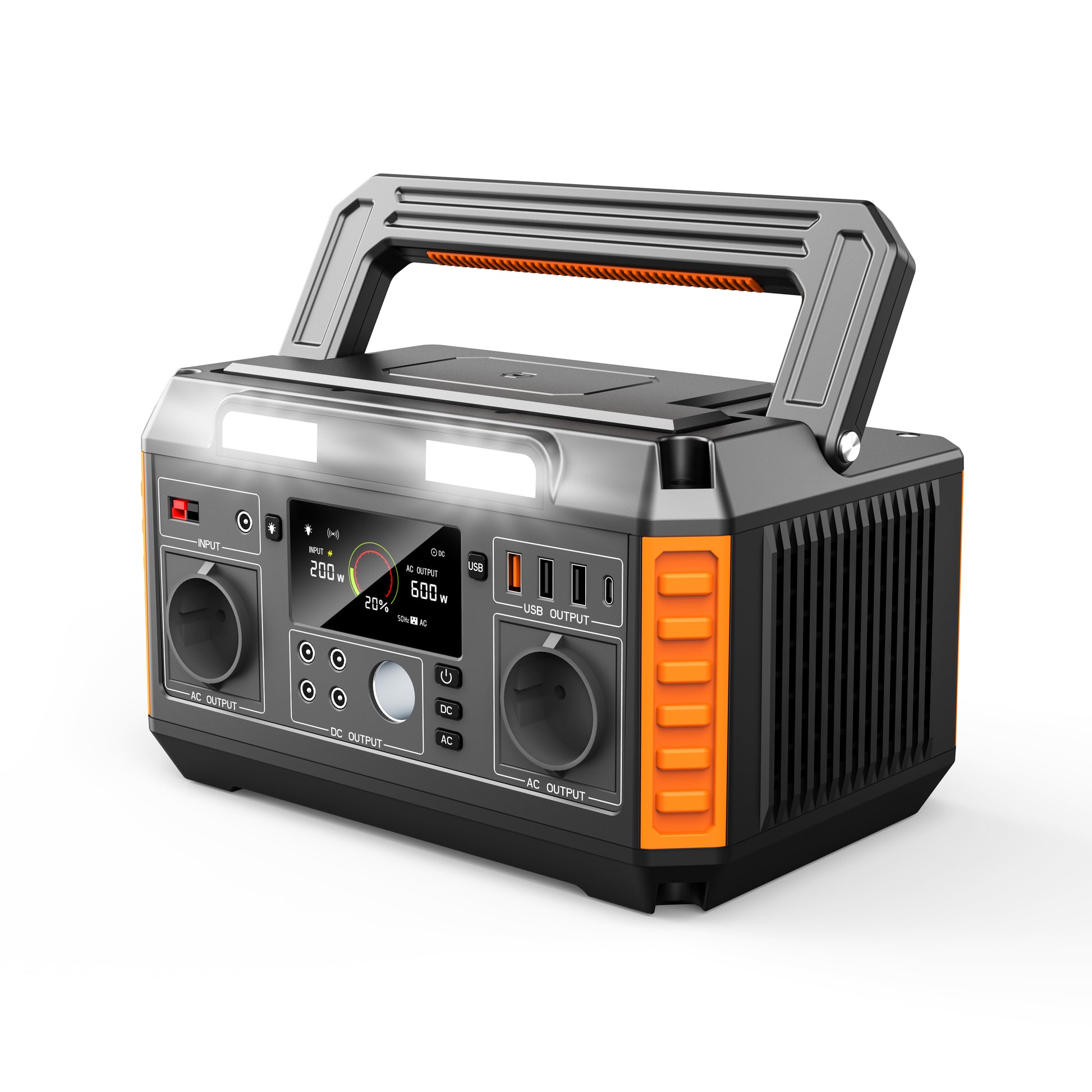

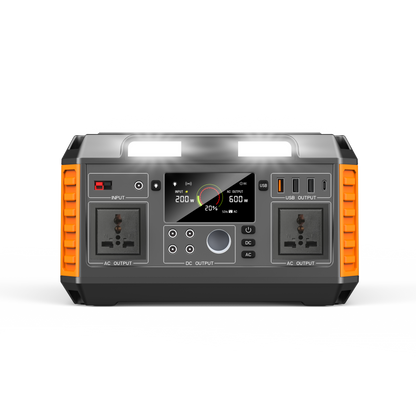

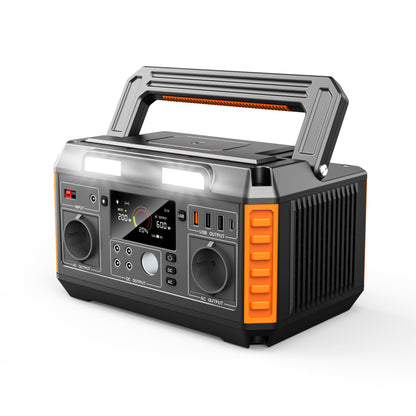

520Wh 600W Pure Sine Wave Portable Power Station with 12V Car Socket
520Wh 600W Pure Sine Wave Portable Power Station with 12V Car Socket
Regular price
$452.00 USD
Regular price
Sale price
$452.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

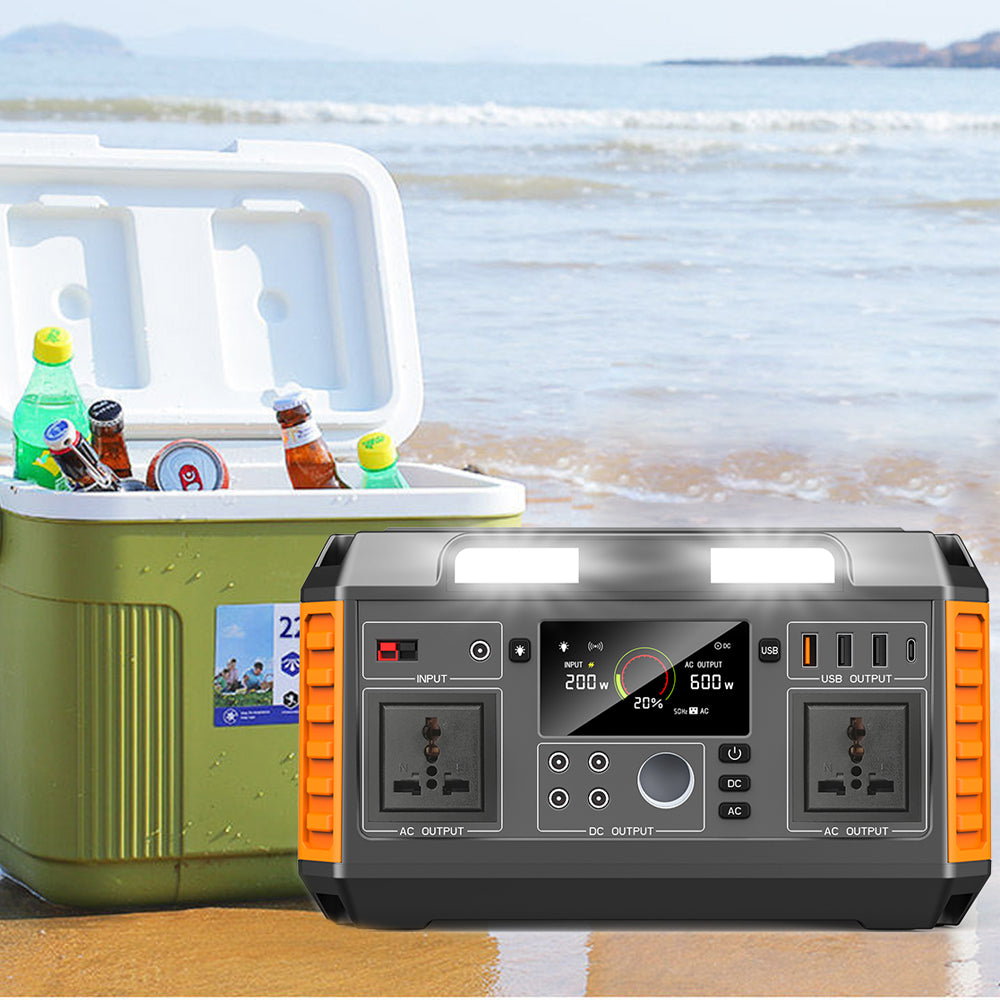

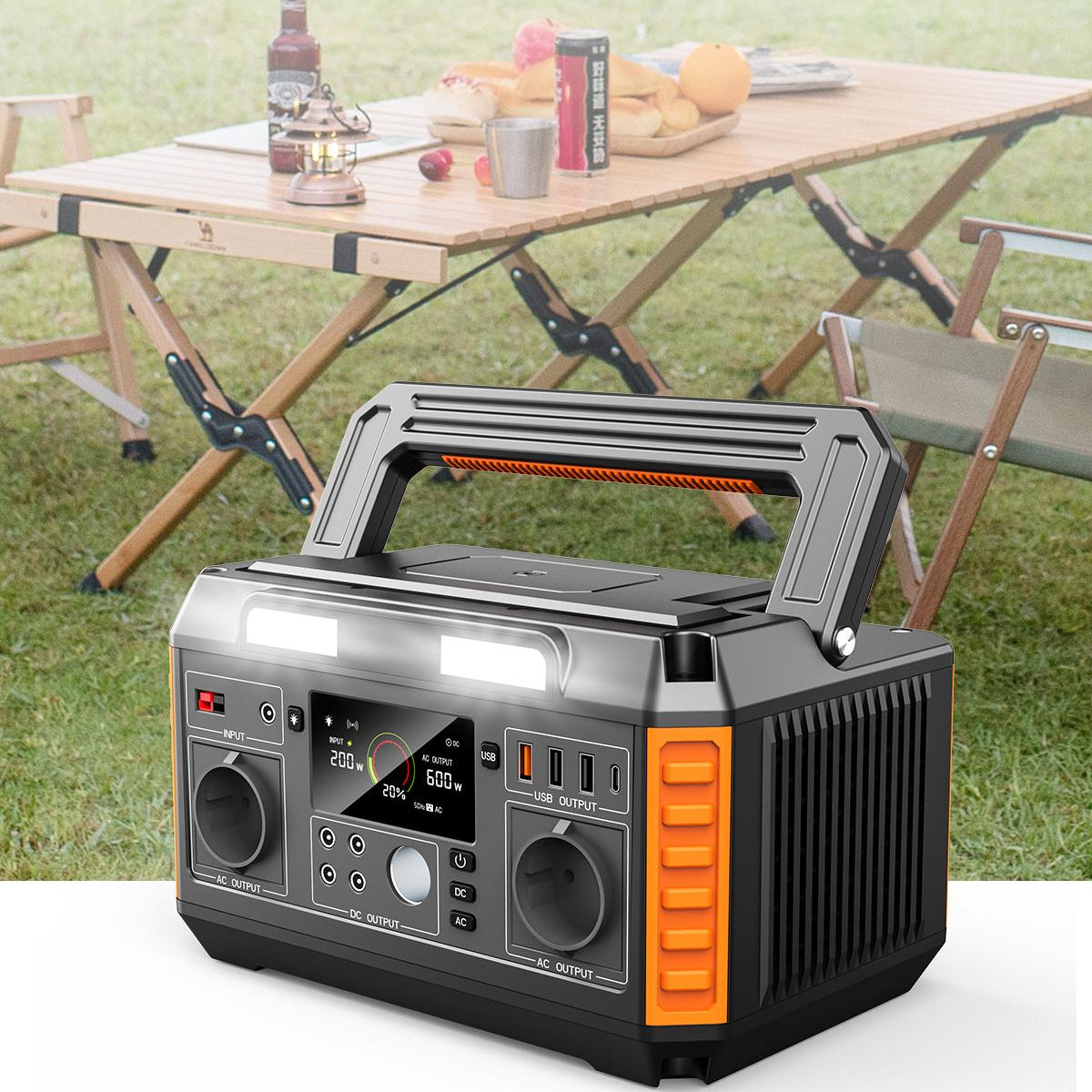

520Wh high-quality lithium power station delivering 600W continuous pure sine wave AC. Rich outputs (USB/Type-C/DC/12V car socket), 15W wireless charging, and triple recharging (adapter/solar/car) make it ideal for power outages, camping, outdoor operations, emergency rescue and home backup.
Features:
- 520Wh (140,400mAh @3.7V) capacity; pack voltage 22.2V (6S9P 18650 cells), >1000 cycles (~80% retention).
- 600W continuous dual AC pure sine wave output (up to ~650W constant output range noted).
- Fast I/O: 1× USB QC3.0 (5–12V/2A), 2× USB 5V/3.1A, 1× USB-C PD 60W (5–20V/3A), 4× DC 13.5V/6A (12A max total), 1× 12V cigarette lighter (13.5V/10A, 150W max).
- Triple input charging: DC5521 12–26V/8A (max 120W), Anderson 12–26V/8A (max 160W), USB-C PD 60W. Full charge ~7–12h depending on input/combo.
- 15W wireless charging pad + 4W LED lighting.
- Comprehensive protection: Short circuit / Over-current / Over-voltage / Under-voltage / Overload / Over-temperature.
- Certified safe: PSE, FCC, CE, RoHS, MSDS, UN38.3 with air & marine transportation reports.
- Portable build: about 5.9 kg, compact 288 × 198 × 166 mm.
Charging Time (Reference)
- Single DC5521 port: ~4–5 h
- Single Anderson port: ~4 h
- Single USB-C PD60W: ~11–12 h
- Anderson + USB-C simultaneous: ~3–4 h
- DC5521 + USB-C simultaneous: ~4–5 h
Specifications
| General Parameters | |
|---|---|
| Built-in battery | High quality lithium-ion battery |
| Battery capacity | 520Wh / 140,400mAh / 3.7V |
| Operating temperature | −10℃ ~ 40℃ |
| AC output | 2 × AC pure sine wave |
| AC continuous output power | 600W (constant output range up to 650W; 85–120V / 160–230V) |
| LED lighting | 4W |
| Wireless charging | 15W |
| DC / USB outputs | USB: 1 × USB (5–12V/2A, QC3.0), 2 × USB (5V/3.1A) Type-C: 1 × USB-C (5–20V/3A, PD 60W) DC5521: 4 × DC 13.5V/6A (12A max total) 12V Car Socket: 1 × Cigarette lighter (13.5V/10A, 150W max) |
| Inputs & Recharging | |
| DC5521 | 12–26V / 8A (max 120W) |
| Anderson | 12–26V / 8A (max 160W) |
| USB-C | 5–20V / 3A (PD 60W max) |
| Full charge time | DC: ~4–5h; Anderson: ~4h; USB-C: ~11–12h; Anderson+Type-C: ~3–4h; DC+Type-C: ~4–5h |
| Battery Pack | |
| Cell type | 18650 |
| Single cell capacity | 2600mAh |
| Configuration | 6 series 9 parallel (6S9P) |
| Cell voltage | 3.7V |
| Battery voltage | 22.2V |
| Cycle life | >1000 times (≈80% capacity maintained) |
| Protection & Certification | |
| Protections | Short circuit, Over-current, Over-voltage, Under-voltage, Overload, Over-temperature |
| Certifications | PSE, FCC, CE, RoHS, MSDS, UN38.3; Air & Marine transportation reports |
| Mechanical | |
| Dimensions (L×W×H) | 288 × 198 × 166 mm |
| Net weight | About 5.9 kg |
| Packaging | |
| Carrying case dimension | 39.6 × 27.6 × 25.2 cm; single case weight 8.0 kg |
