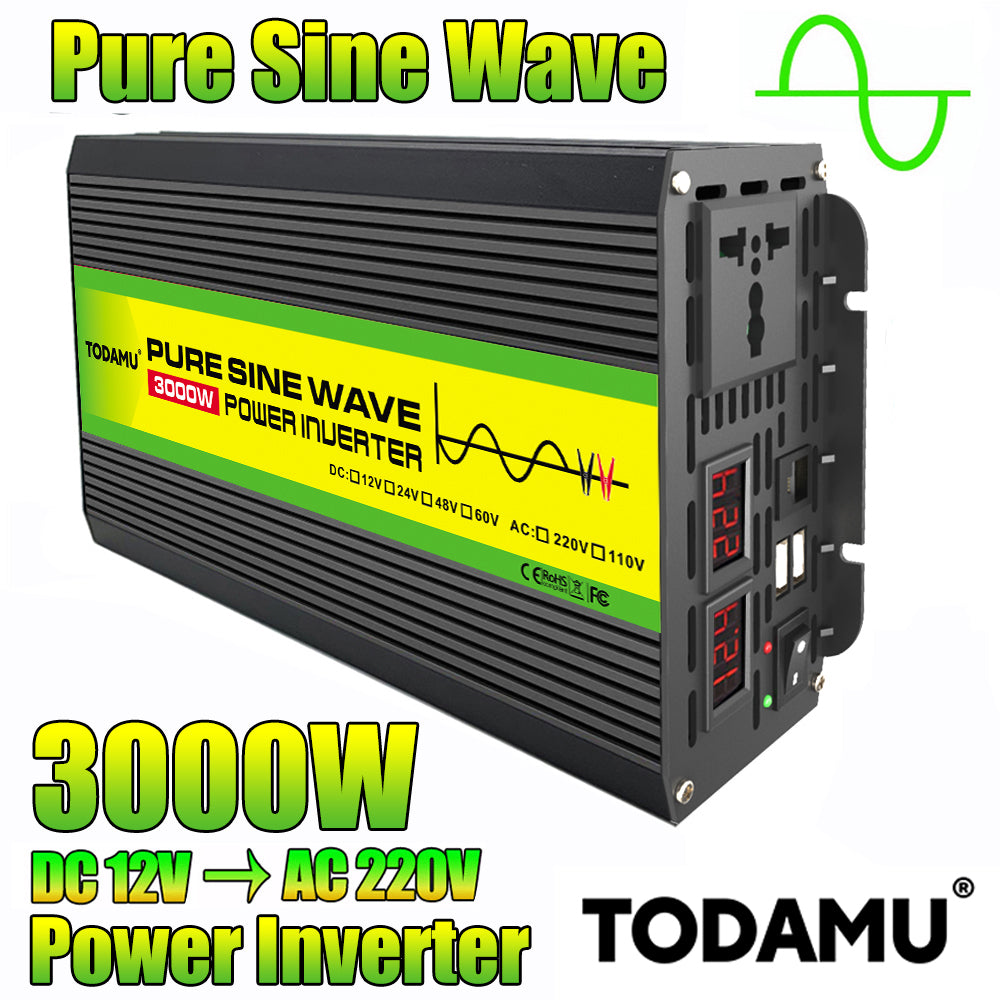

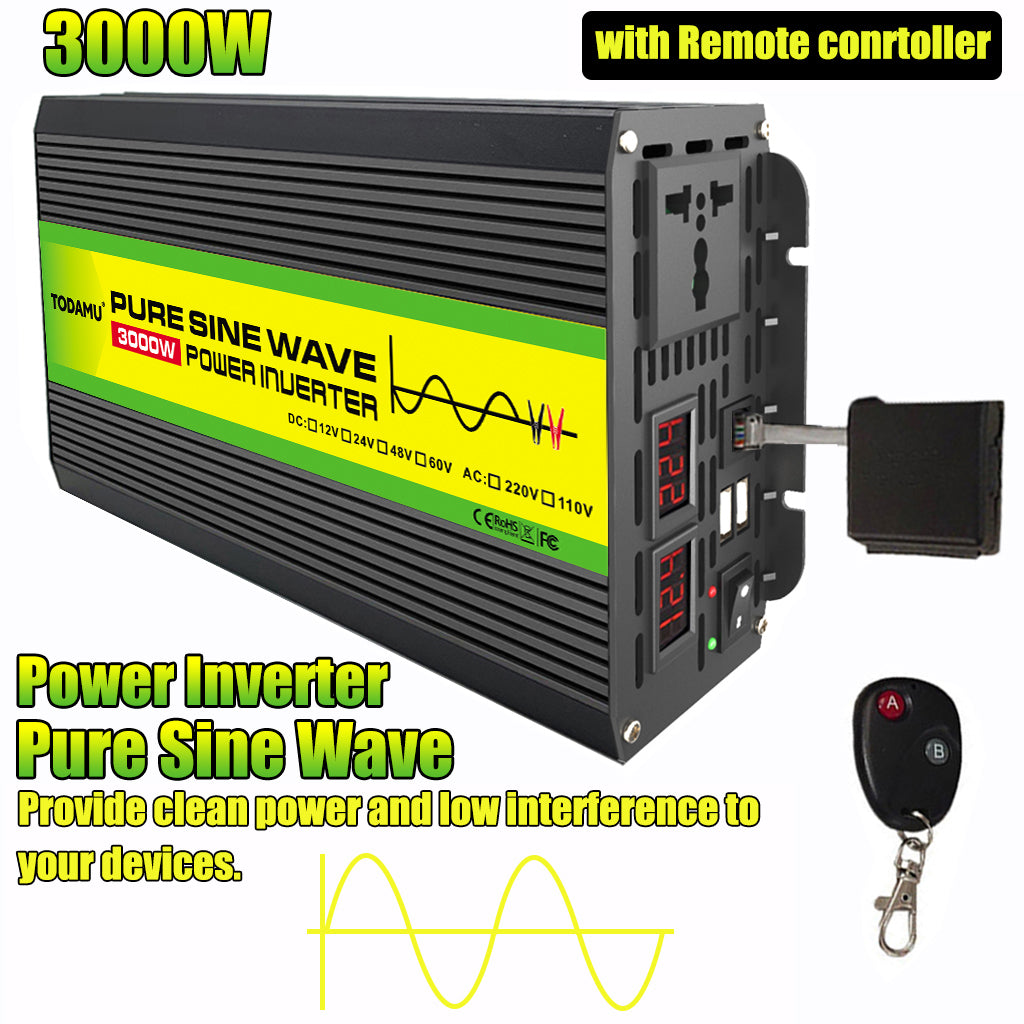

12V/24V/48V/60V 3000W Pure Sine Wave Power Inverter

Specifications:

Model: HZ3000

Name: Pure sine wave power inverter

Input voltage: DC 12V/24V/48V/60V

Output voltage: AC 110V/220V

Output frequency: 50Hz

Peak Power: 3000W

Rated power: 1500W

Weight: 2.4kg

Product size: 28.8x15x7.5cm

Maximum Active Surge Rating (less than 1 second): 3000W

Maximum AC Current per socket:8.33Ampere

Output Waveform: True/pure sine wave (<3% THD)

Efficiency: 90%

No Load Current Draw (DC side) <0.6 A

3000W Pure Sine Wave Power Inverter – Multi-Voltage DC to AC Converter

This 3000W Pure Sine Wave Power Inverter delivers a continuous output of 1500W and a peak surge power of 3000W, converting 12V/24V/48V/60V DC to 110V/220V AC. With an AC outlet, dual LED voltage displays, high-current DC terminals, and LED indicators, it’s the perfect solution for car, RV, home backup, outdoor camping, and solar power systems.

✅ Advantages

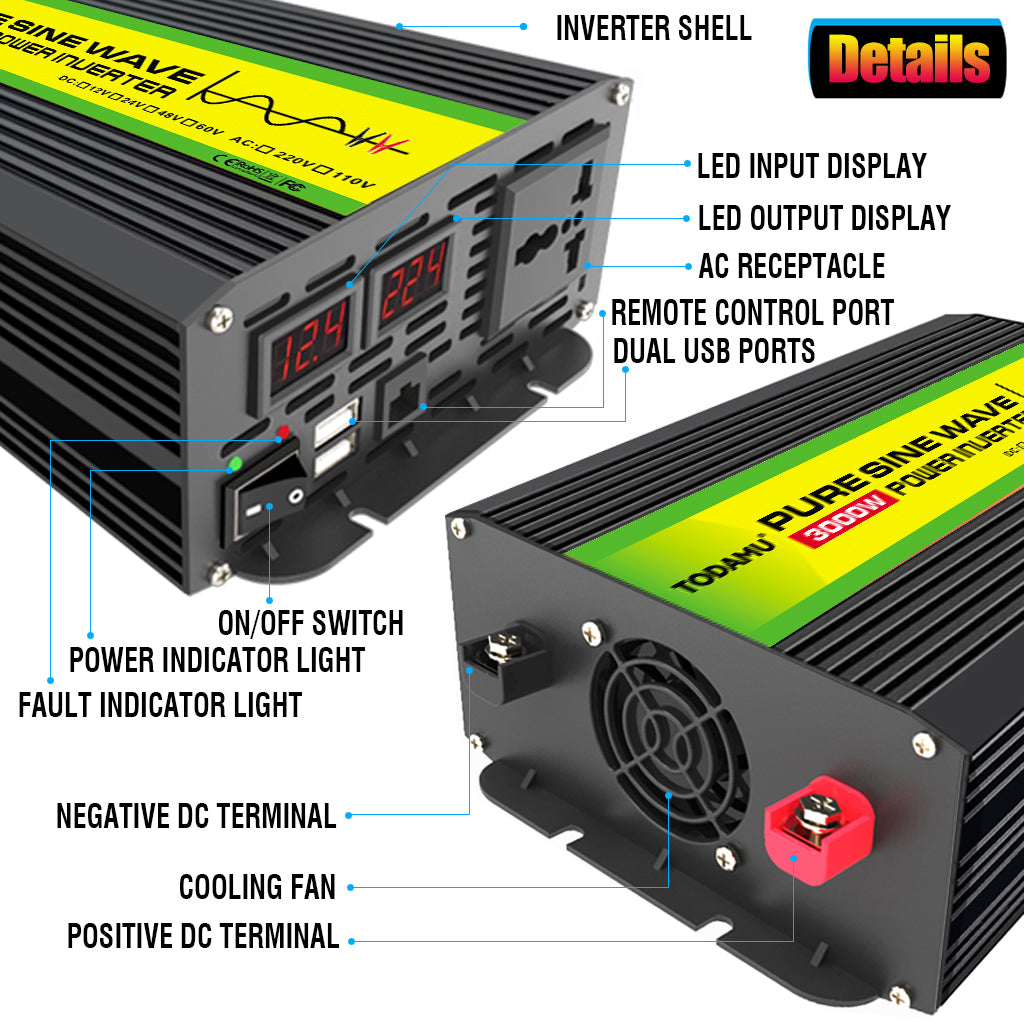

• [Pure Sine Wave] Converts DC to stable 220V AC household power. Features 1 AC outlet, dual LED voltage displays, high-current DC terminals, and LED work lights. (≤1500W continuous load)
• [Strong & Durable] Aluminum alloy housing provides impact resistance; intelligent cooling fan reduces heat and prevents shortages.
• [LED Indicators] Green LEDs show normal working status; red LEDs indicate protection mode for safe operation.

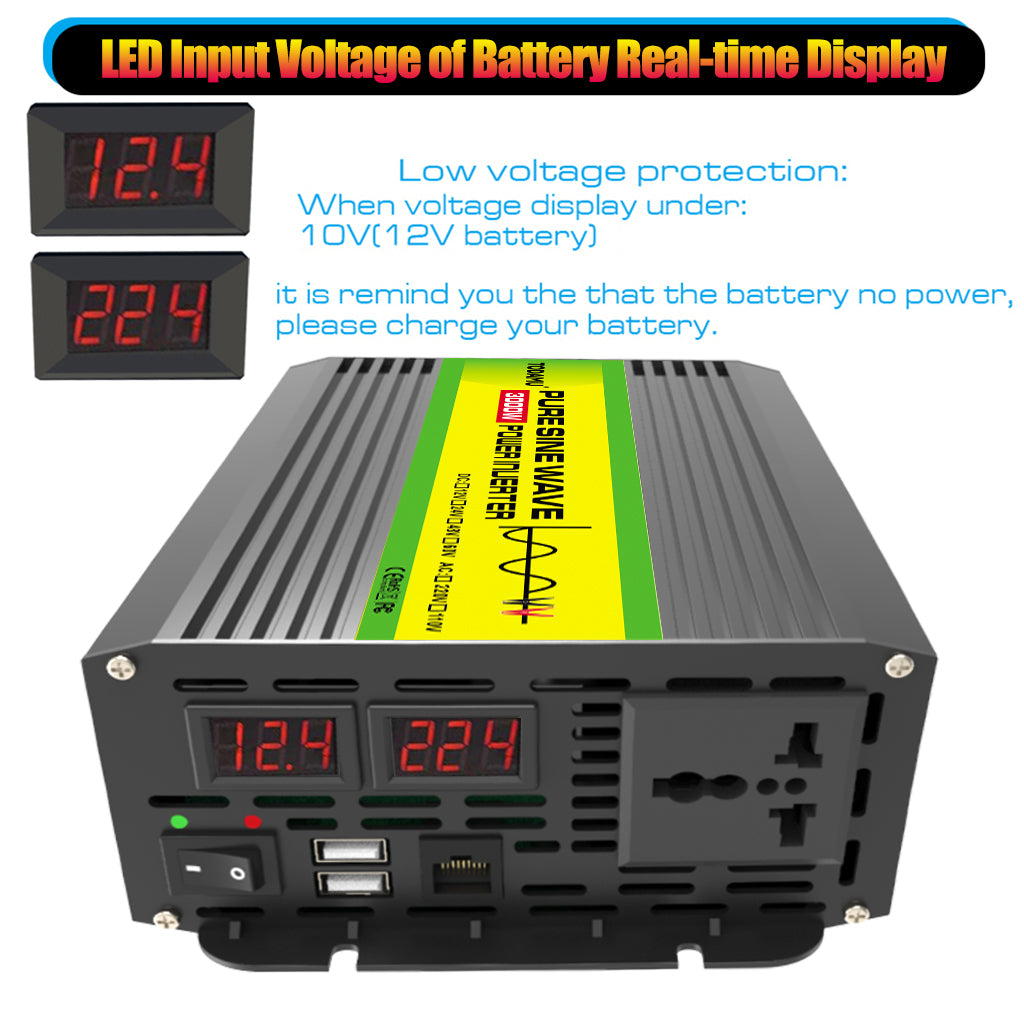

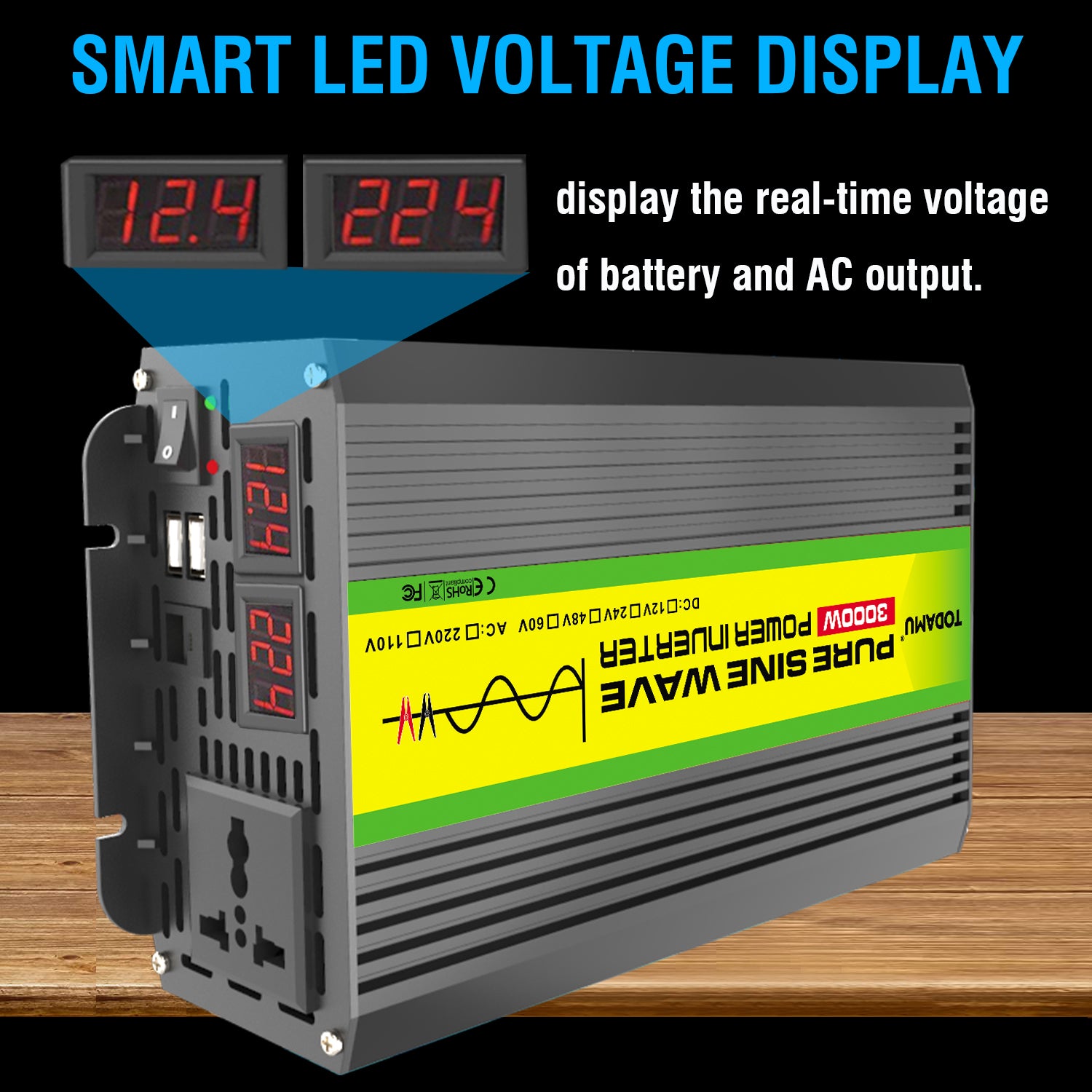

• [LED Voltage Display] Real-time battery voltage monitoring with alerts when charging is required.
• [Wide Applications] Suitable for powering TVs, refrigerators, washing machines, microwaves, air conditioners, and other appliances. Works in cars, RVs, and solar setups.

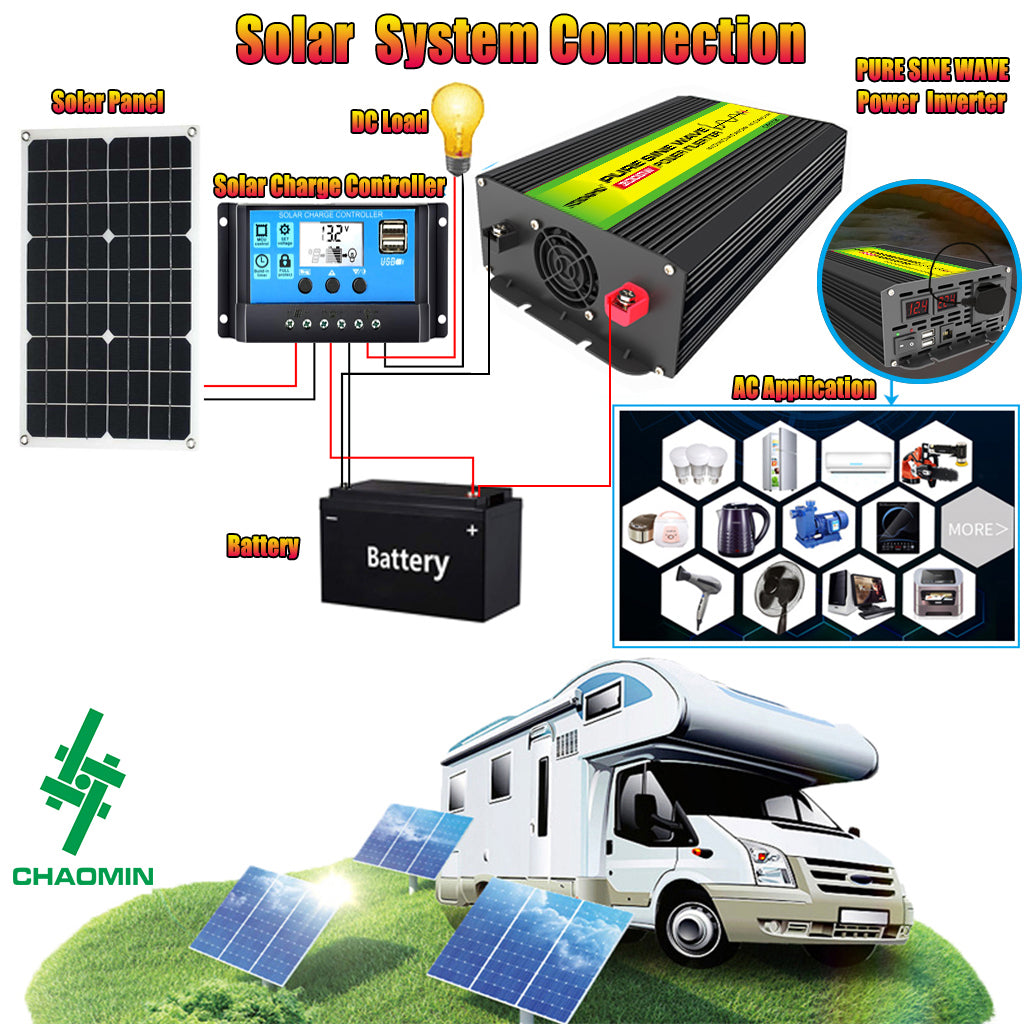

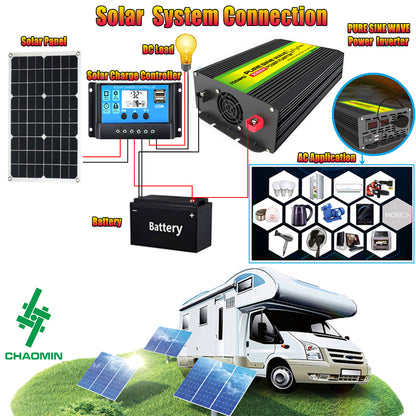

• [Solar System Compatible] Combine inverter + battery + solar charge controller + solar panel for a complete off-grid solar system – convenient for outdoor or emergency use.
• [Multi-Protection] Built-in fuses safeguard against overload, short circuit, overheating, low/high voltage, reverse polarity, and over-current.
• [Car Becomes RV] Run household appliances in your car – enjoy TV, games, and comfort like being in an RV.

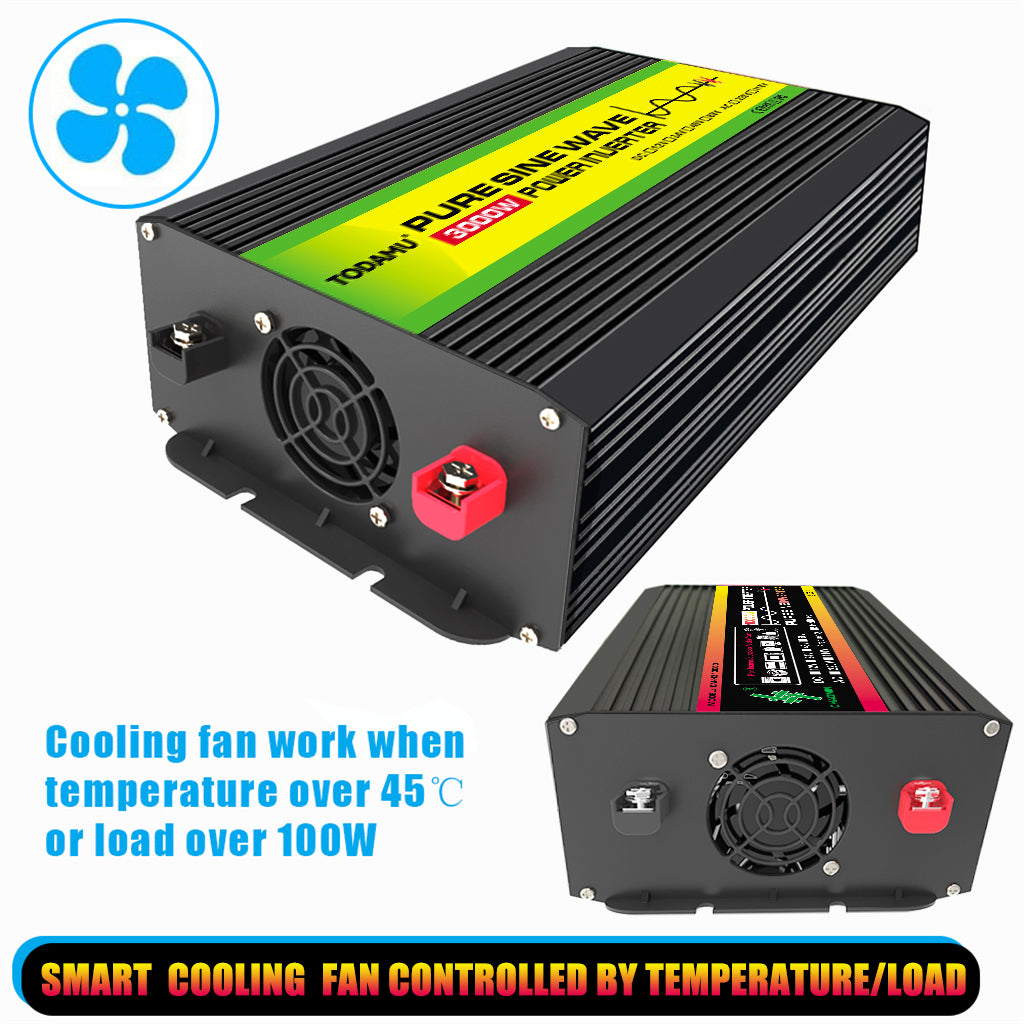

• [Silent Intelligent Cooling Fan] Auto-adjusting fan reduces heat and noise. Protection mode activates when the temperature exceeds 75℃ until it is safe to resume.

⚡ Features

• Input Options: 12V (cars), 24V (trucks), 48V & 60V (electric vehicles)
• Output Voltage Range: 110~130V / 210~230V
• Safe Input Voltage Range:
  • 12V: 9.8~15V
  • 24V: 20~28V
  • 48V: 44~53V
  • 60V: 58~68V
• 8 Safety Protections: Reverse polarity, low input voltage, high input voltage, over-current, short circuit, over-temperature, overload, internal fuses

🔋 Battery Usage Time Calculation

Working time depends on battery capacity and load power.
Formula: Working Time (hours) = Battery Capacity × Voltage × 0.8 × 0.9 / Load Power

Example: A 12V 60AH battery powering a 220V 100W bulb → 12×60×0.8×0.9 ÷ 100 = ≈5.2 hours

(0.8 = battery discharge coefficient, 0.9 = inverter efficiency)

❓ Choosing the Right Size Inverter

Choose an inverter according to the wattage of your appliances. Always select a model rated at least 10–20% higher than your maximum load for safe and stable performance.
