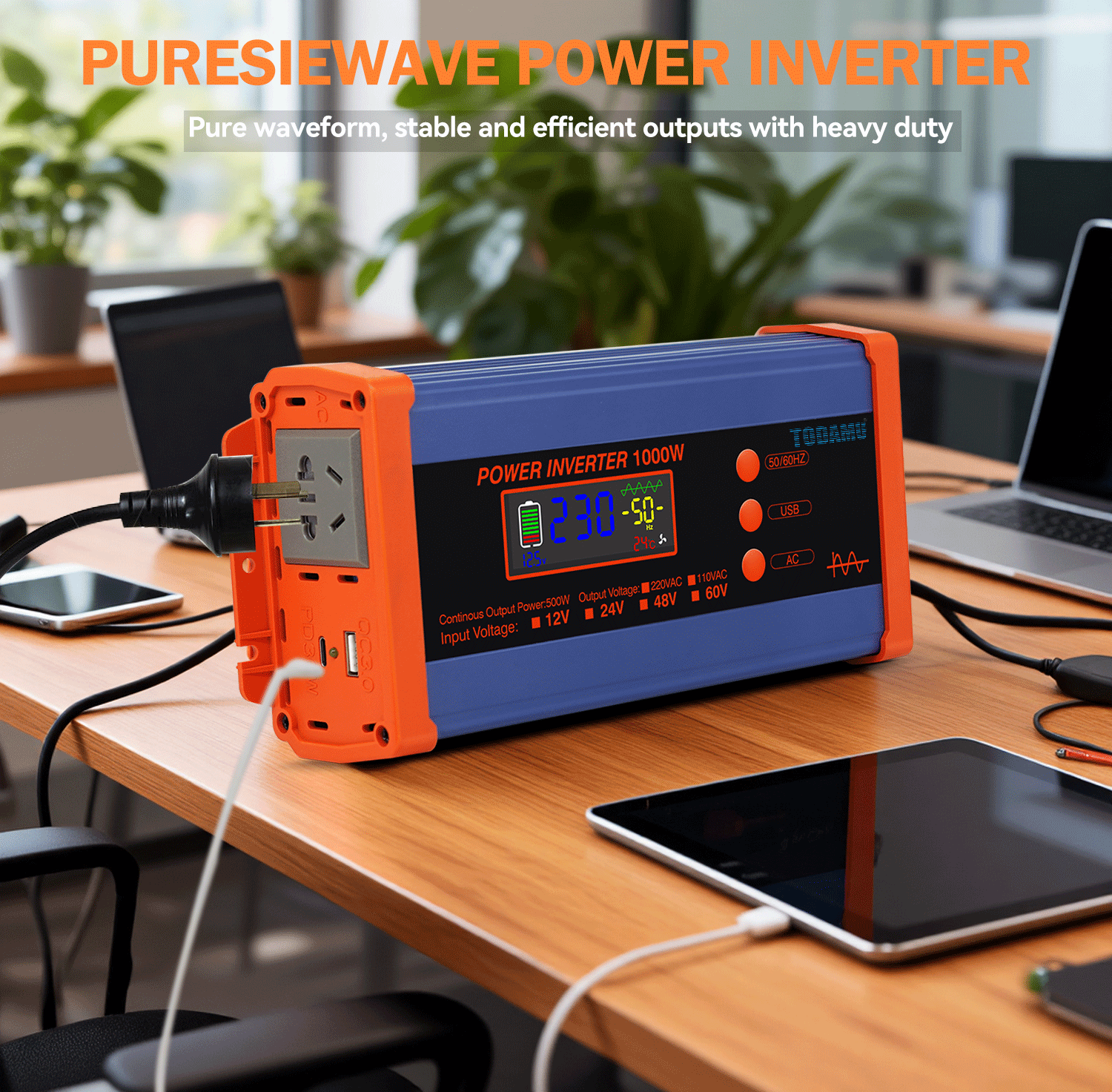

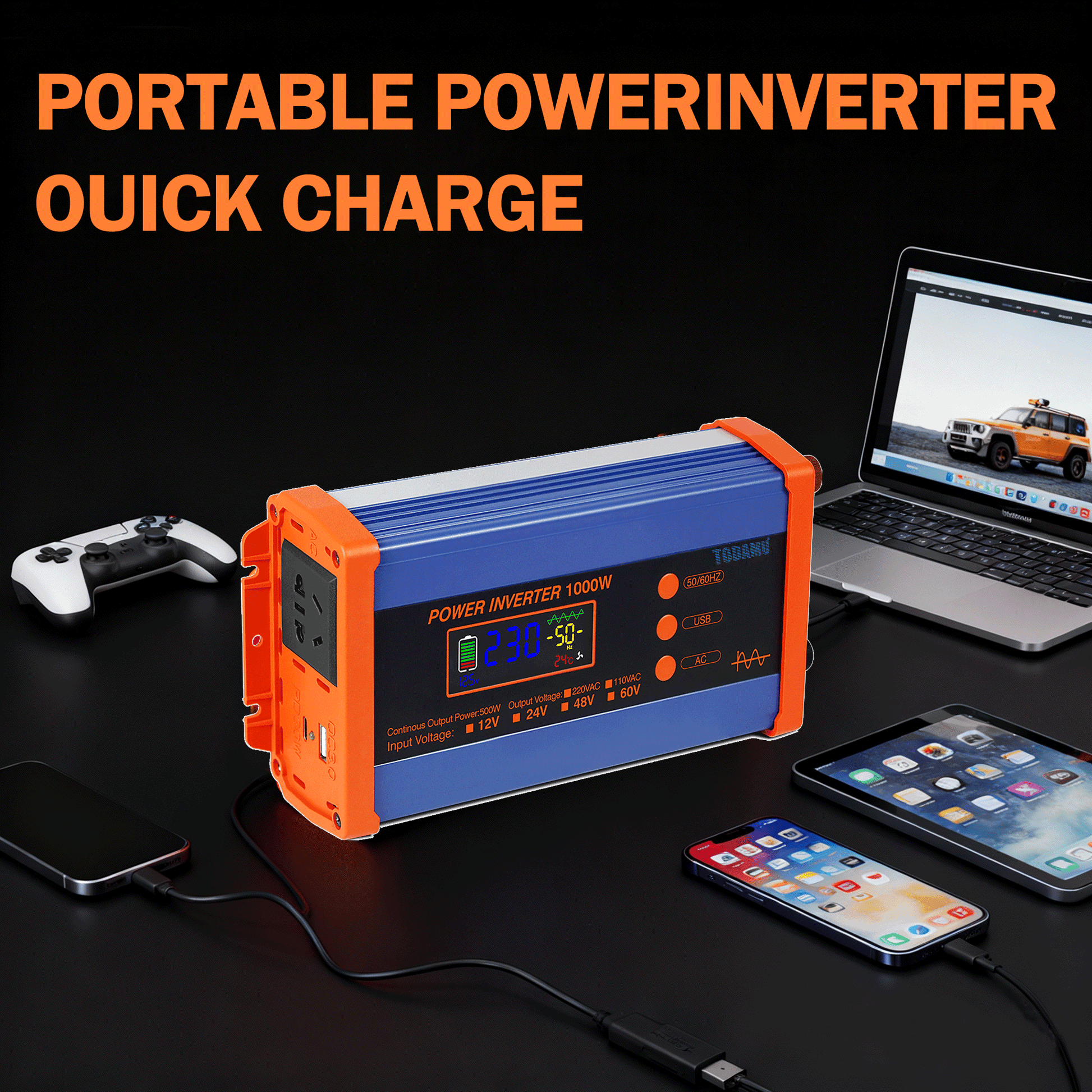

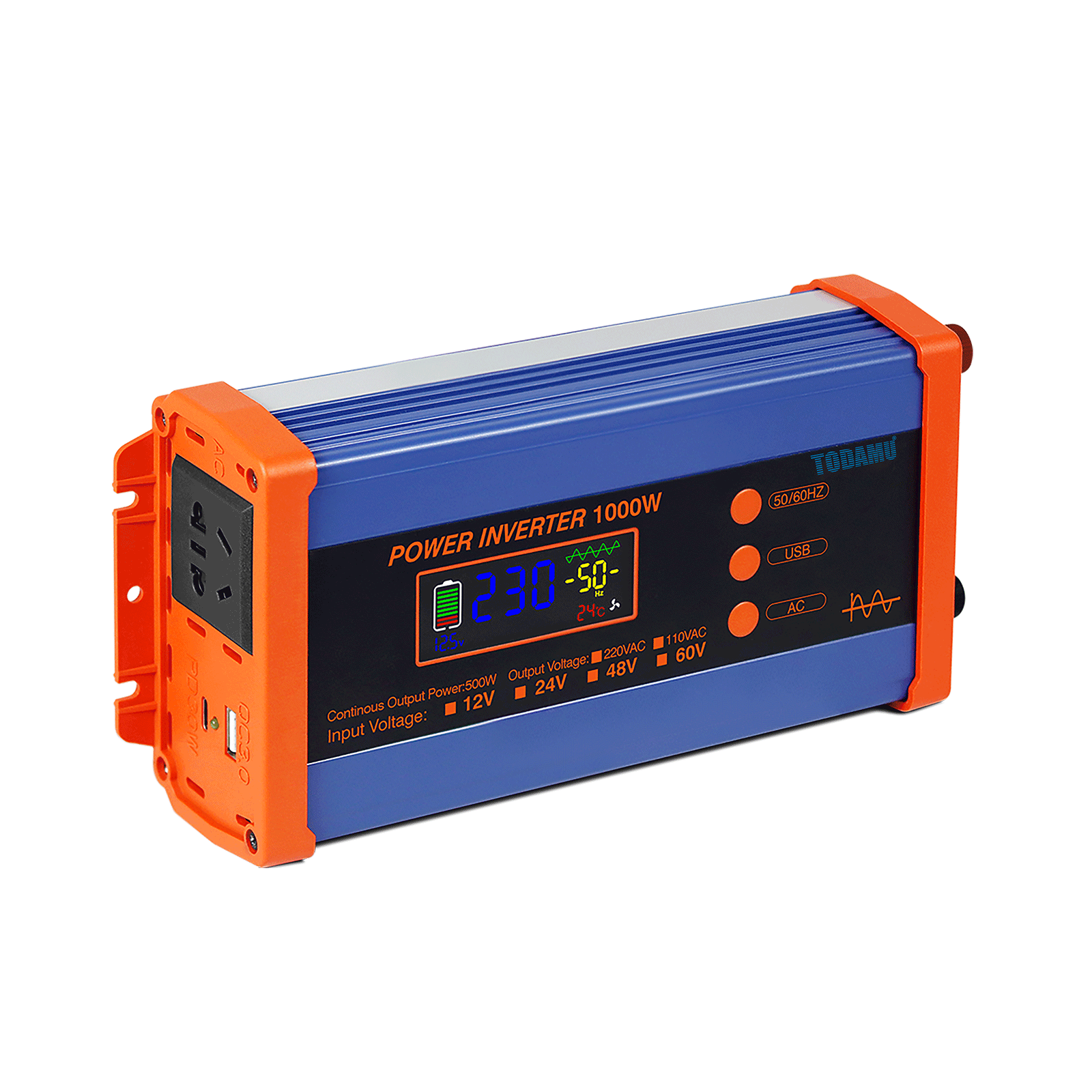

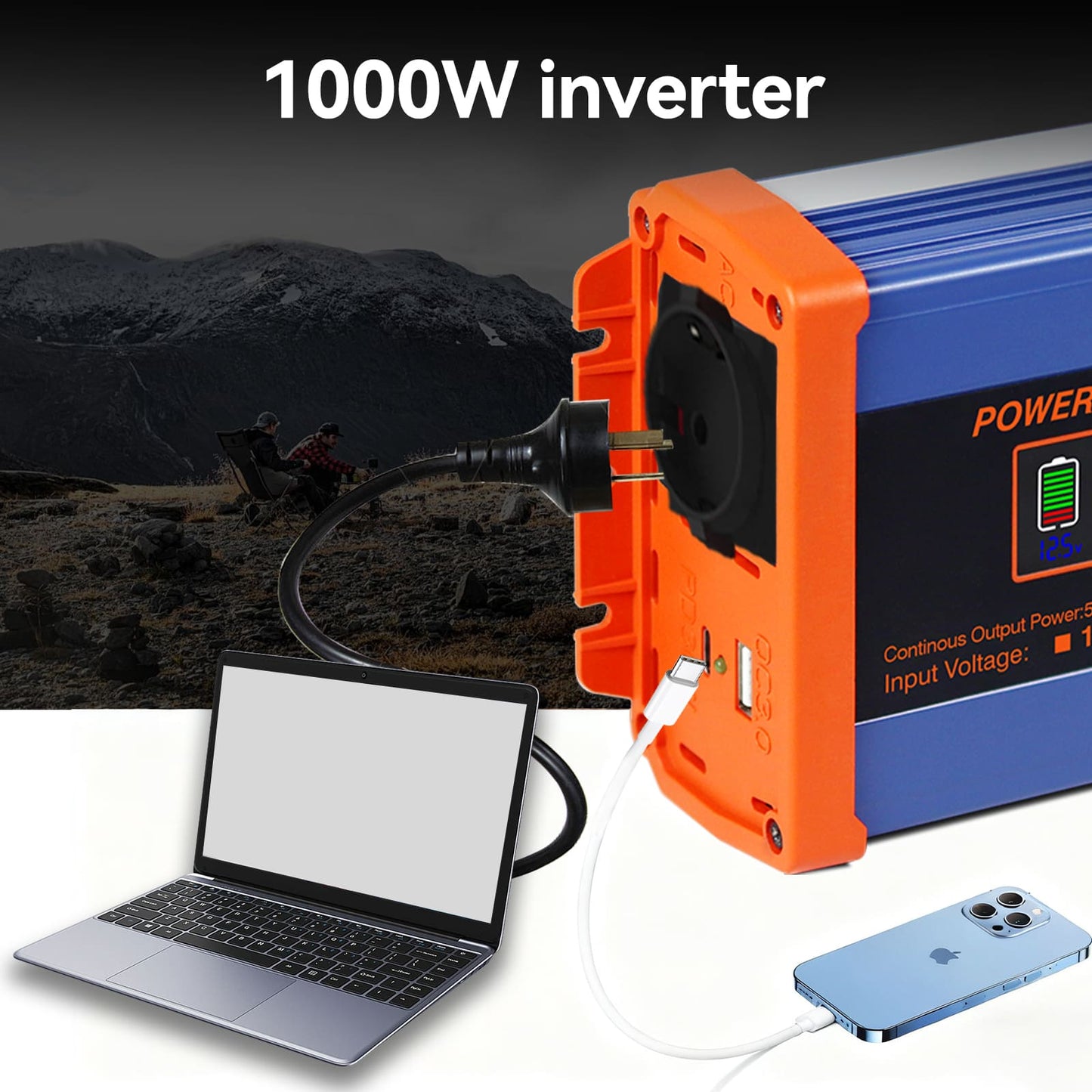

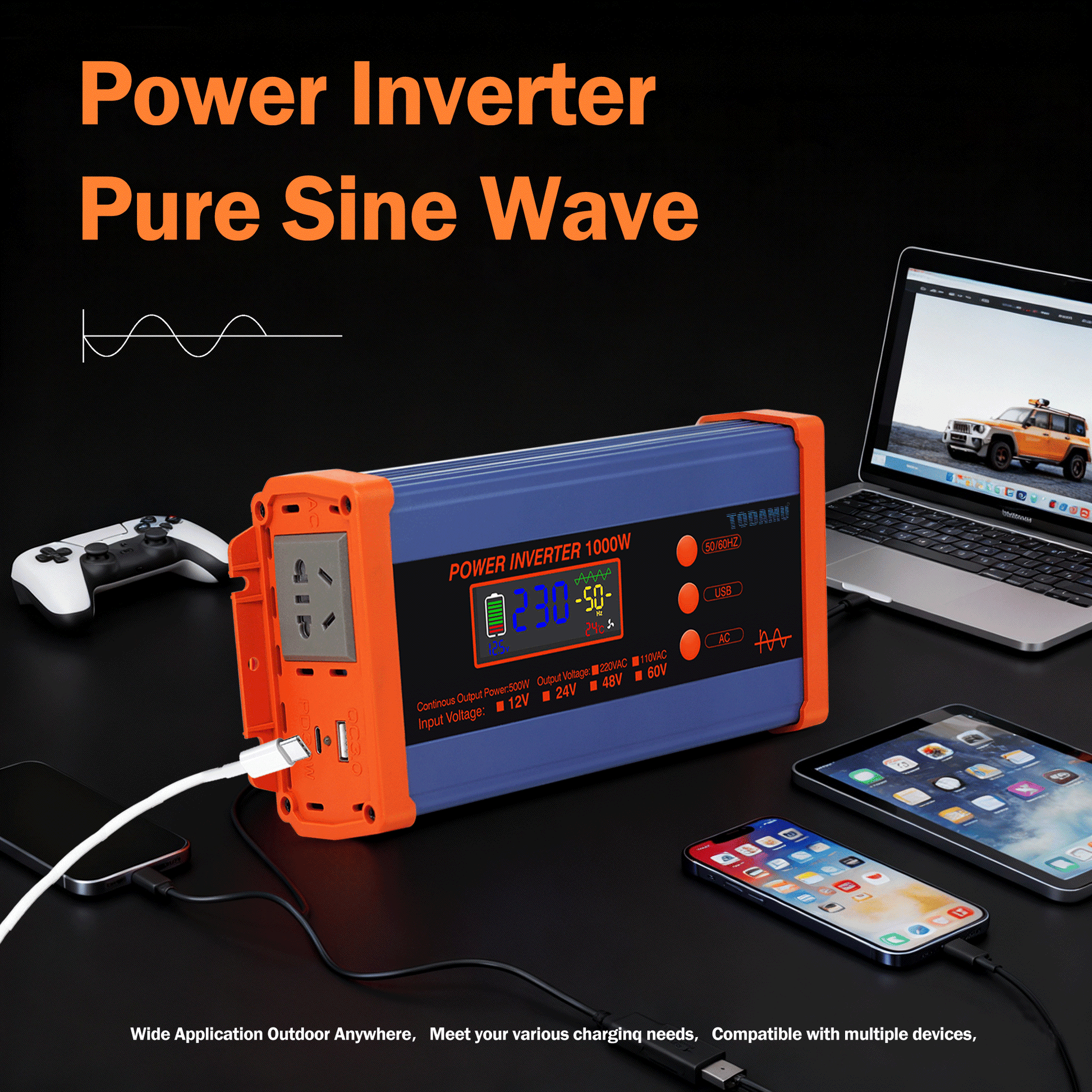

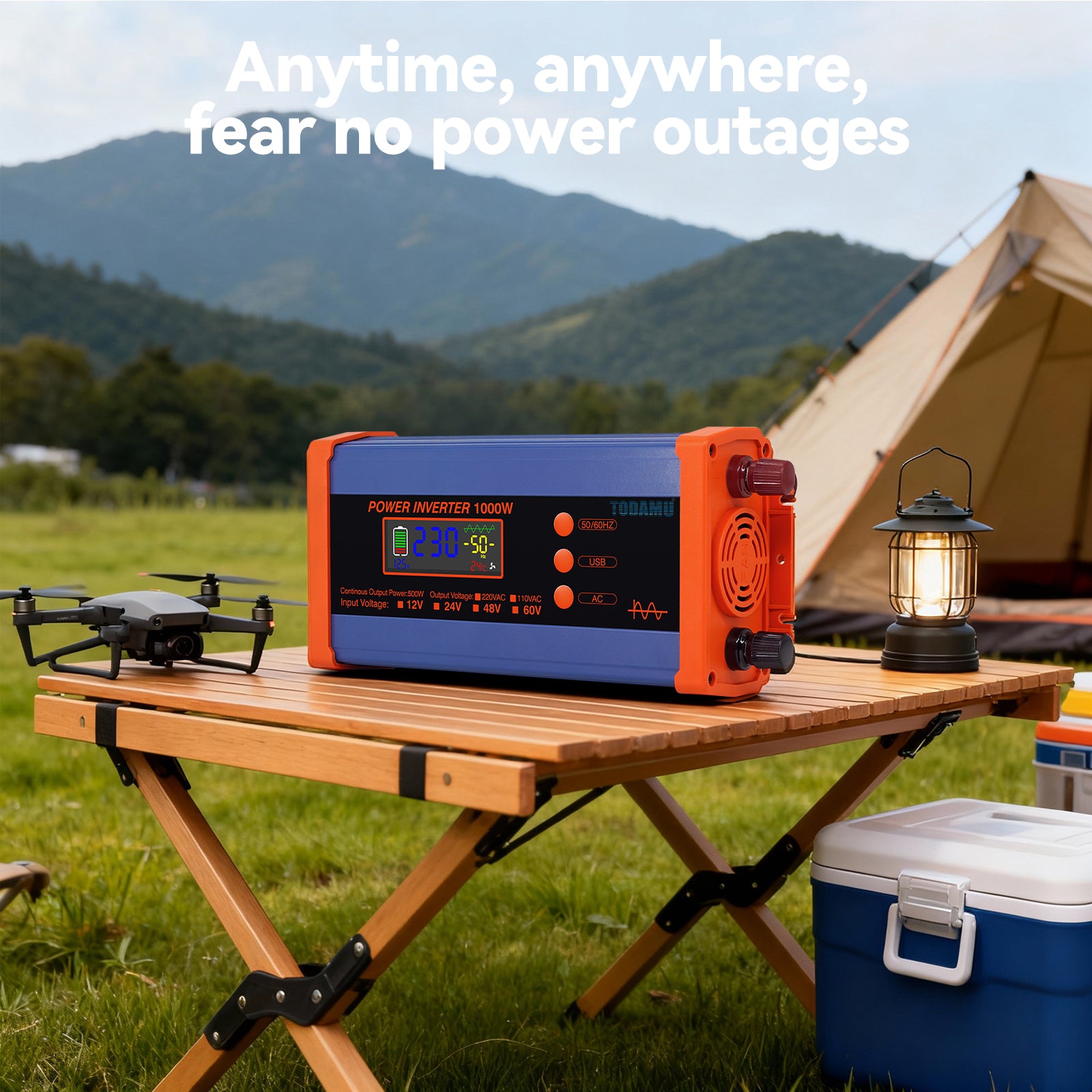

The Peak Power 1000W inverter is a compact and reliable pure sine wave inverter designed for automotive power conversion, outdoor operations, RV systems, and emergency backup applications. With a peak output of 1000W and a continuous output of 500W, it provides clean and stable AC power that is fully compatible with sensitive electronics such as laptops, lighting systems, communication devices, and small tools. Engineered with high efficiency and multi-layer protection, this inverter delivers professional-grade performance for users requiring dependable off-grid power.
| DC Input Parameter | |
|---|---|
| Input voltage | 12Vdc |
| Input voltage range | 9.5~15.5Vdc |
| Low voltage alarm | 9.5Vdc |
| Low voltage protection | 9Vdc |
| Overvoltage protection | 16Vdc |
| AC Output Parameter | |
| Peak power | 1000W |
| Continuous output power | 500W (Resistive load) |
| Output efficiency | ≥87% |
| Output voltage | 220Vac |
| Output frequency | 50Hz/60Hz |
| Output waveform | Pure sine wave |
| Total Harmonic Distortion (THD) | <5% (Linear load) |
| Specification Parameter | |
| High temperature protection | >70°C, shut down the output |
| Short-circuit protection | Supported (Auto-shutdown) |

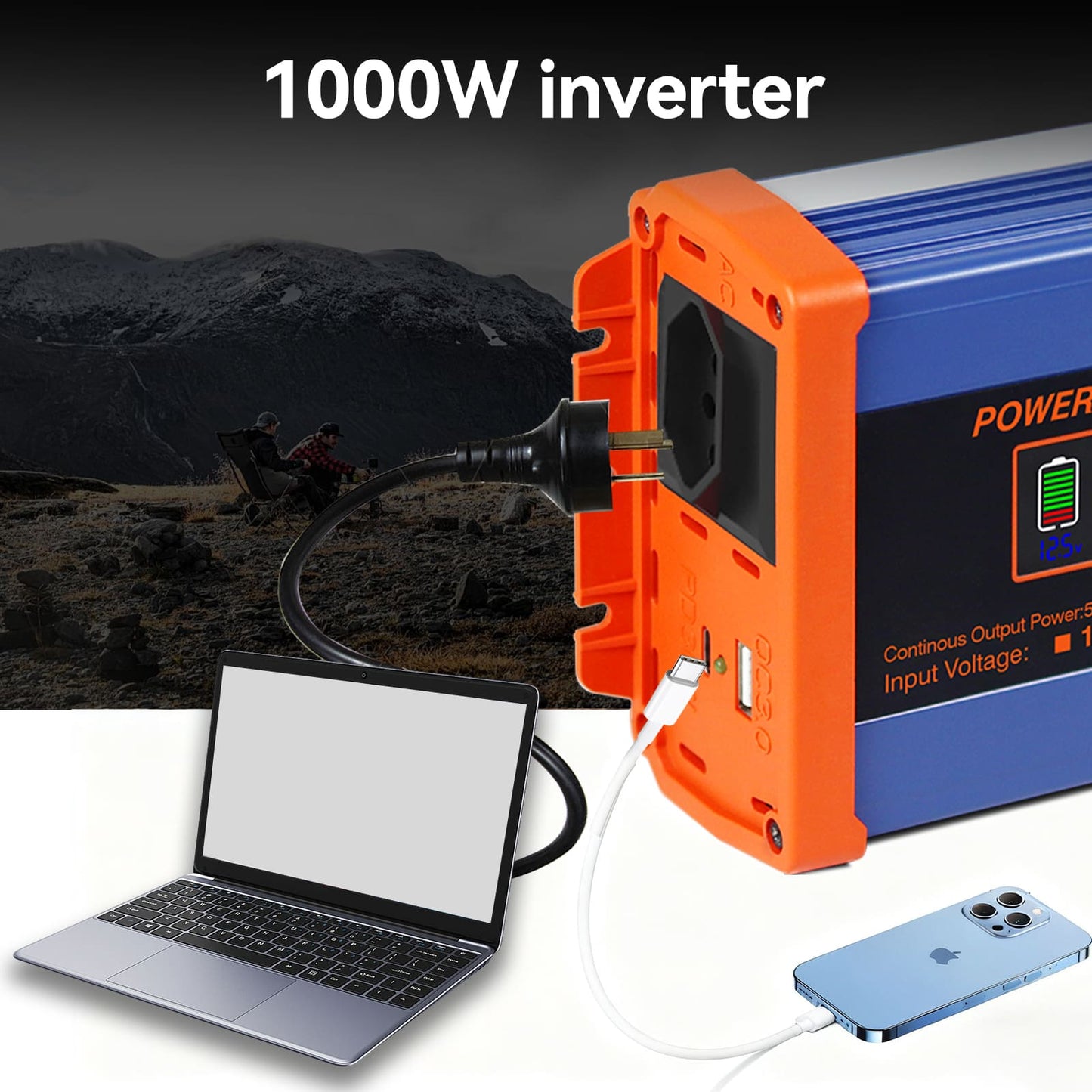

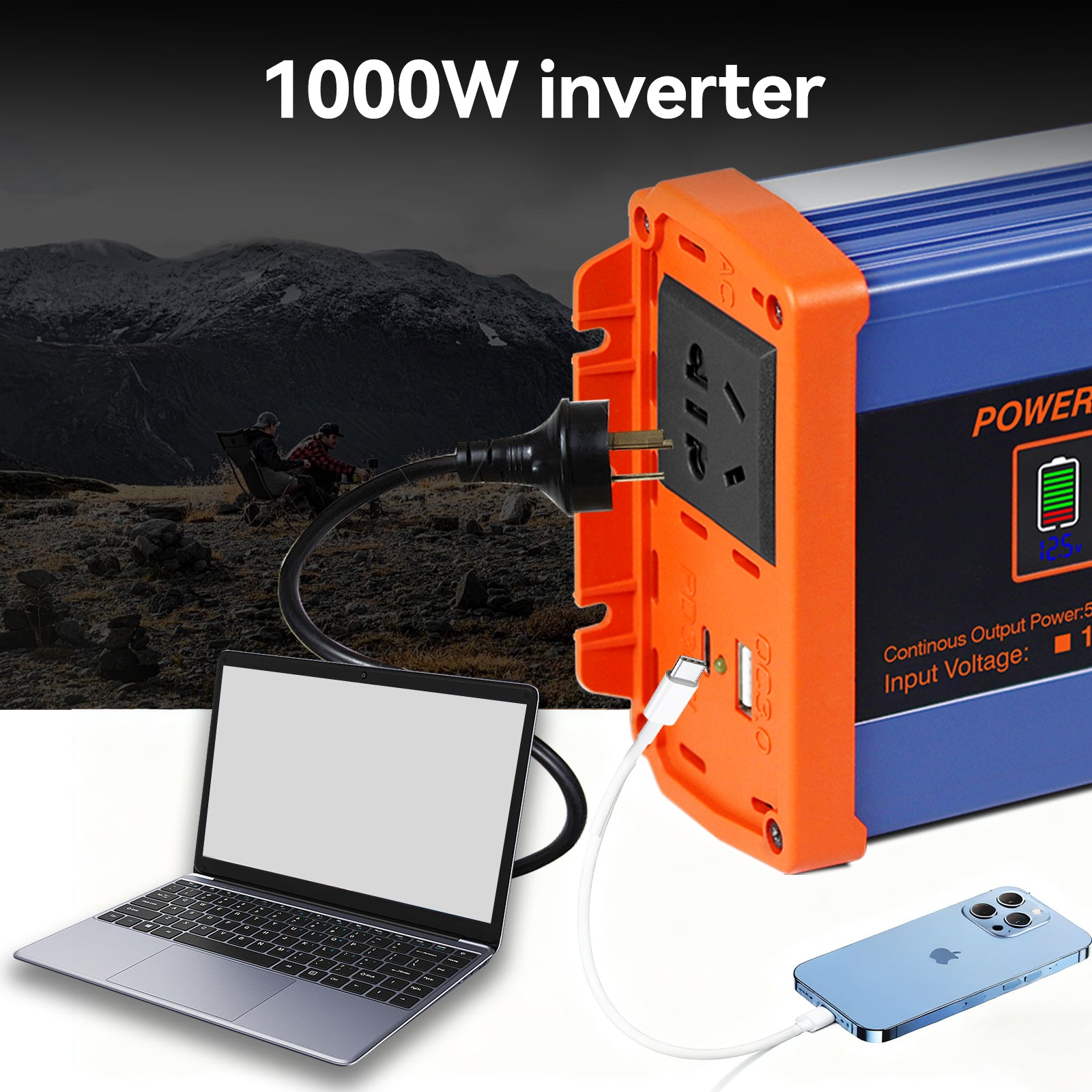

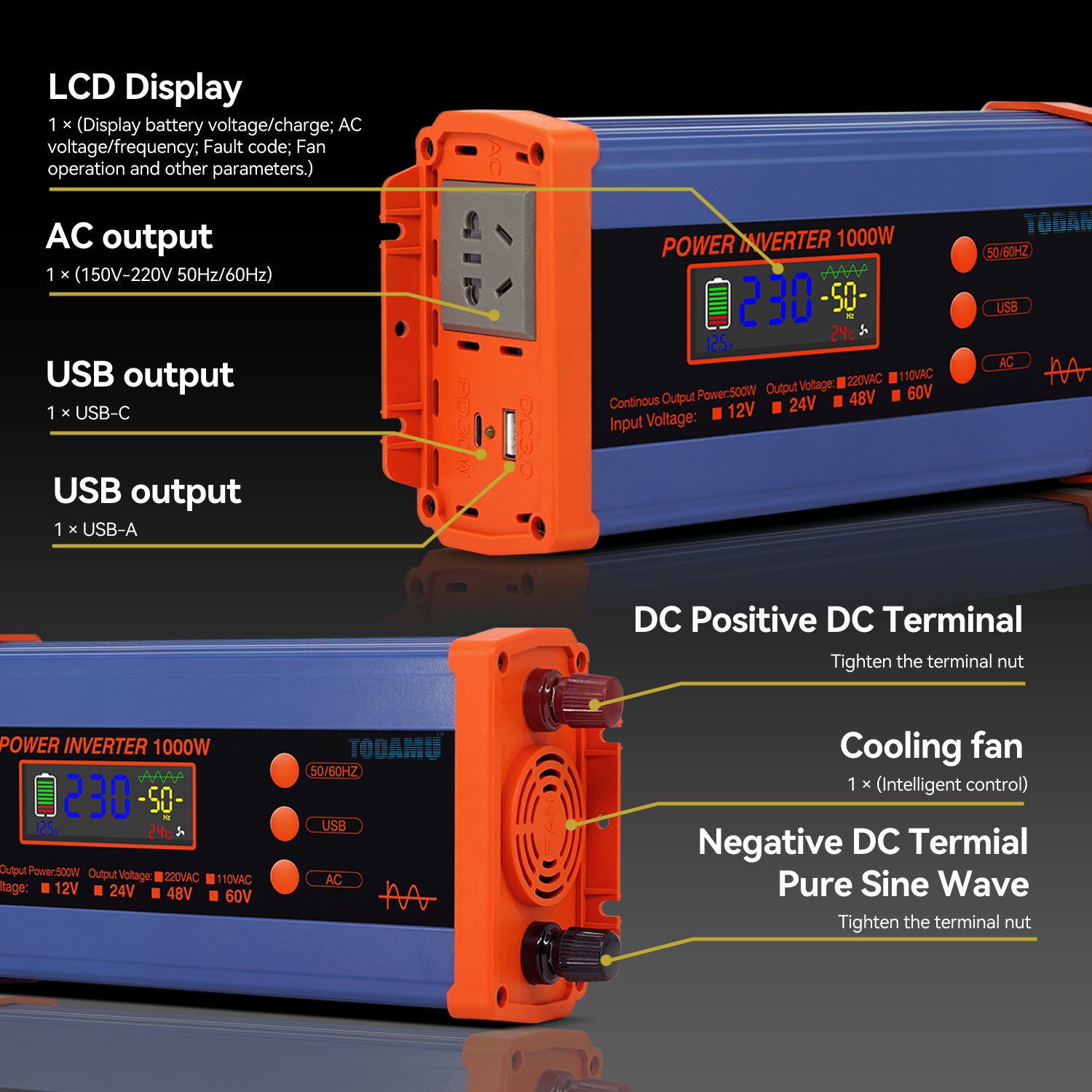

| AC output | 1 × (150V~220V 50Hz/60Hz) |
| USB output | 2 × (1 × USB-A, 1 × USB-C) |
| Cooling fan | 1 × (Intelligent control) |

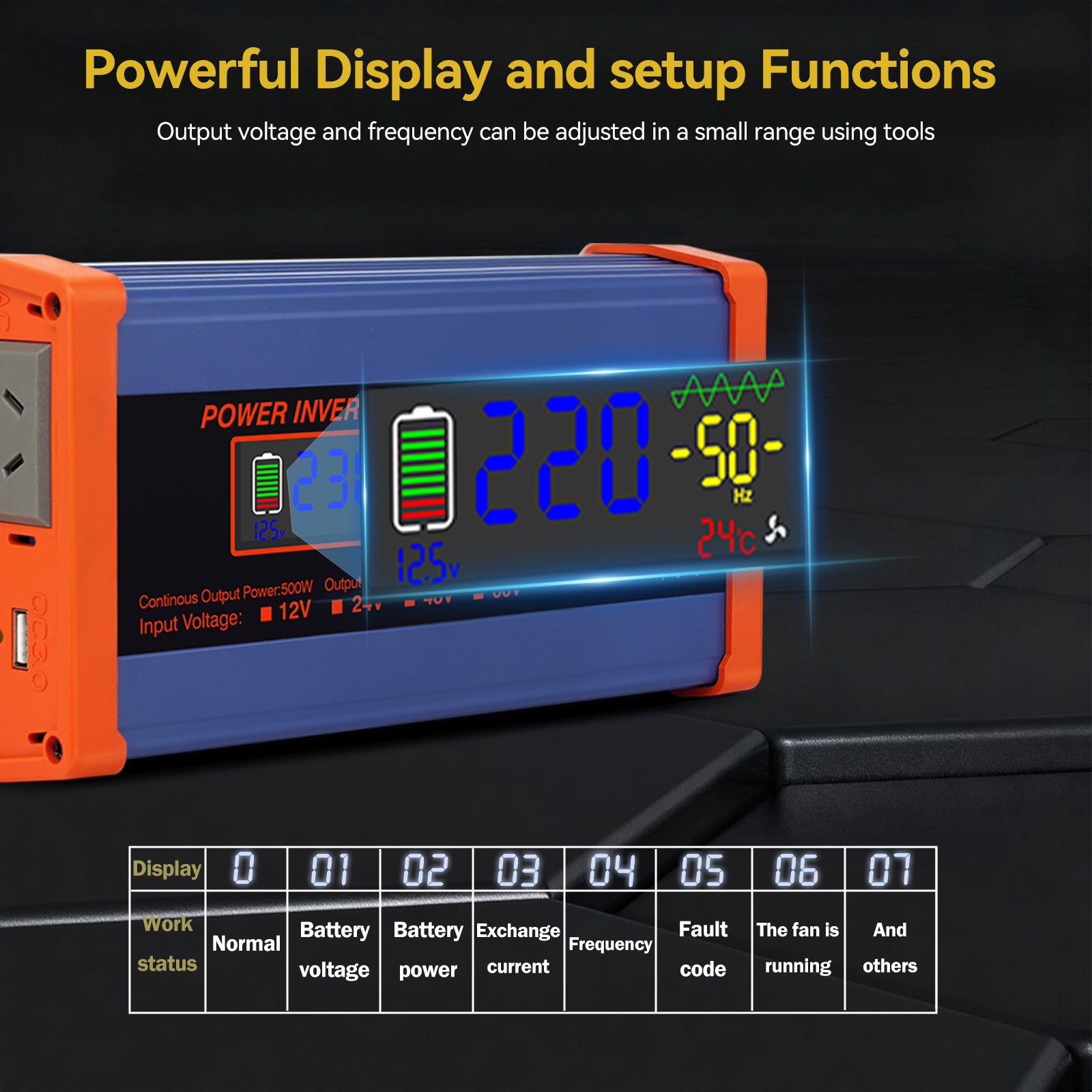

| LCD display | 1 × (Battery voltage/charge; AC voltage/frequency; Fault code; Fan operation and other parameters) |
| Switch | 3 × (50Hz/60Hz; USB; AC) |
| Positive & negative terminals | Tighten the terminal nut |
| Working temperature/humidity | -20~60°C, 10~90%RH (No condensation) |
| Storage temperature/humidity | -40~70°C, 10~95%RH (No condensation) |
| Service altitude | ≤3000m (Over 1000m derated use) |

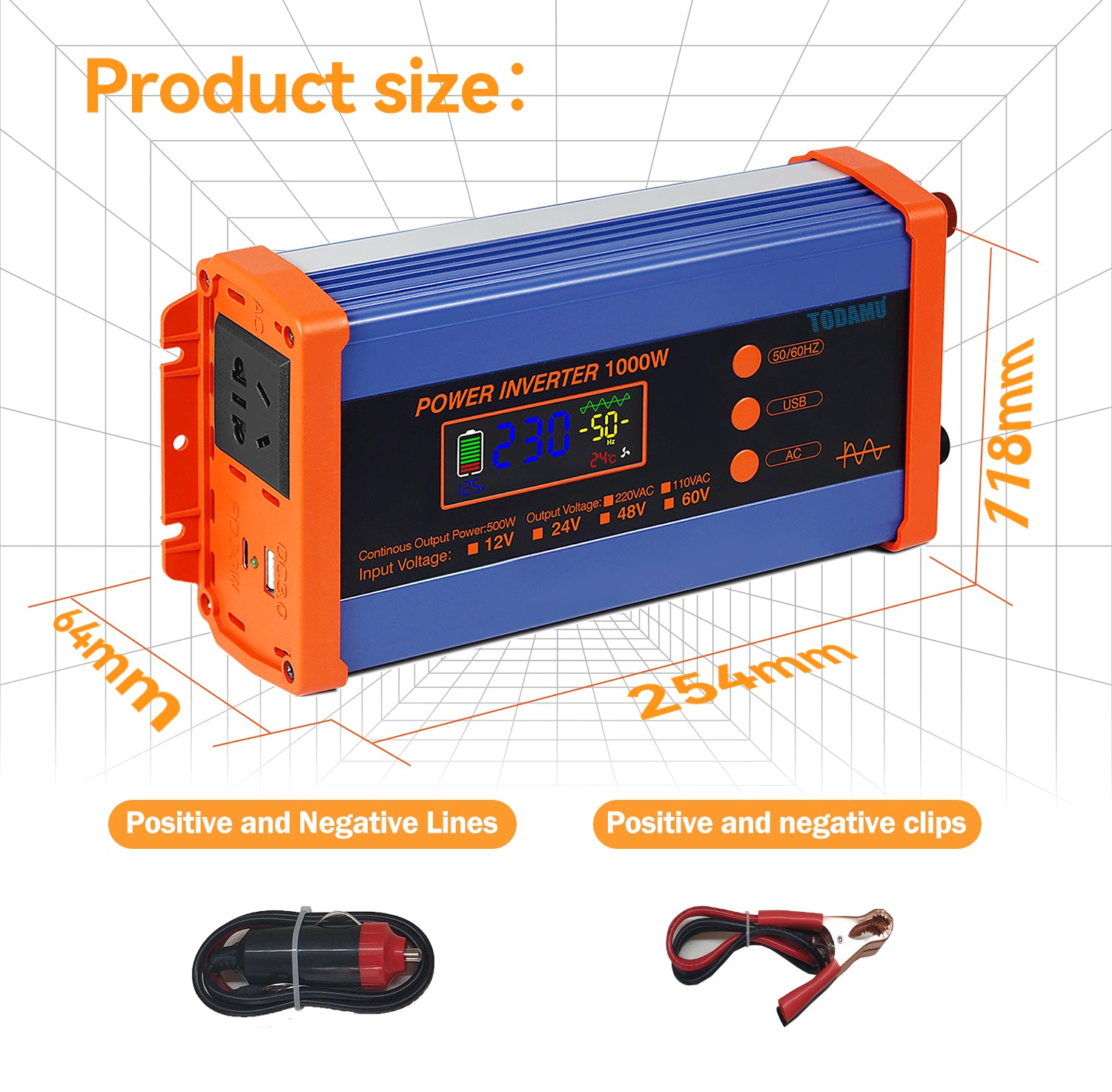

| Product size | 254 × 118 × 64mm |
| Net weight | 0.95kg |
| Package size | 300 × 150 × 65mm |
| Gross weight | 1.25kg |
Why Choose this inverter:
- The output waveform closely matches household grid power, with THD < 5%, ensuring stable performance for laptops, LED lights, audio devices, and precision instruments.
-
12V DC to 220V/110V AC Conversion for Wide Applications. Works directly with car batteries, RV power systems, and solar battery banks.
- 1000W Peak Power & 500W Continuous Output, Suitable for most mobile and outdoor tools, lighting systems, and small appliances.
- High Conversion Efficiency ≥87%, Optimized MOSFET technology reduces energy loss and extends battery runtime.
Comprehensive Protection System:
- Low voltage alarm (9.5V)
- Low voltage shutdown (9V)
- Over-voltage protection (16V)
- Over-temperature shutdown (>70°C)
- Short-circuit protection (auto cut-off
